Trailer Mounted Mist Cannons
ShanHua delivers high-performance Trailer Mounted Mist Cannons for flexible, on-demand dust suppression. Engineered for mobility and rapid deployment, our systems bring powerful misting technology directly to your changing work environment. Ideal for construction sites, demolition projects, and event venues, this is the ultimate mobile dust suppression equipment for versatile site management.

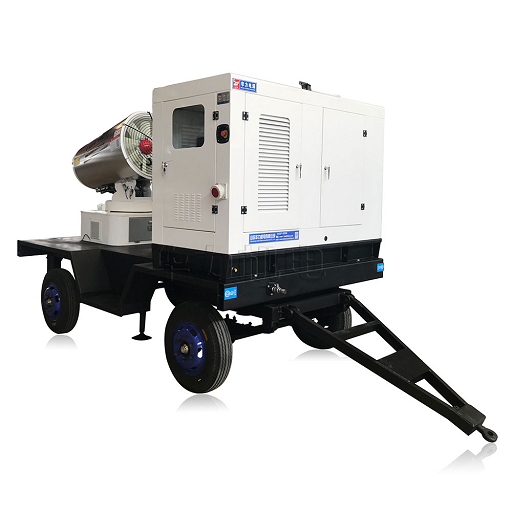

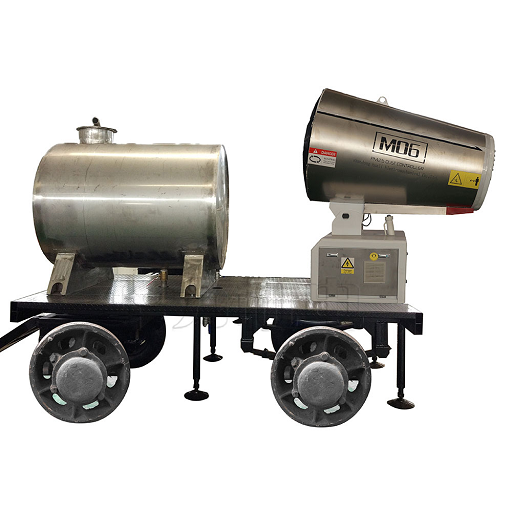

A Mobile Trailer Fog Cannon is a self-powered, highly mobile dust control system. It consists of a powerful fog cannon machine and a dedicated diesel generator set, both mounted securely on a robust, road-worthy trailer. This integrated design allows the unit to be towed to any location and operate independently of a local power grid. For sites without a dedicated water supply, it can be optionally configured with an onboard water tank for fully autonomous operation, creating the ultimate mobile dust suppression equipment.
Our mobile mist cannons are engineered from the ground up for durability, flexibility, and ease of use in the field, combining our advanced atomization technology with a robust, self-contained platform.
We use American Thumb brand nozzles and a high-pressure Nanfang pump to create finer, more concentrated fog particles for maximum dust capture efficiency.
Built on a heavy-duty steel chassis with road-worthy tires and stabilization jacks, our trailers are designed to handle the rigors of any job site.

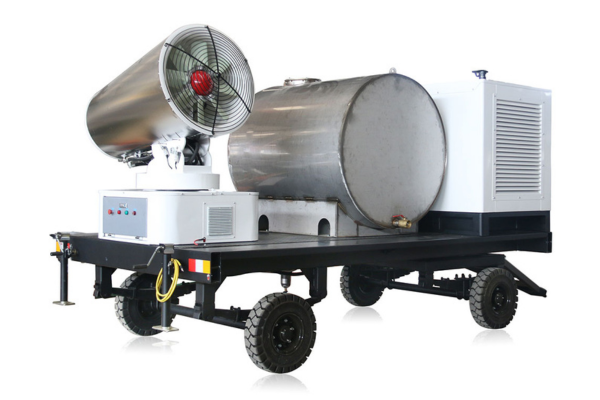

With an integrated generator and an optional onboard water tank, our trailers can operate autonomously for hours, perfect for remote or undeveloped sites.
The entire system, including the cannon's rotation and tilt, can be managed via remote control, allowing for safe and efficient operation from a distance.

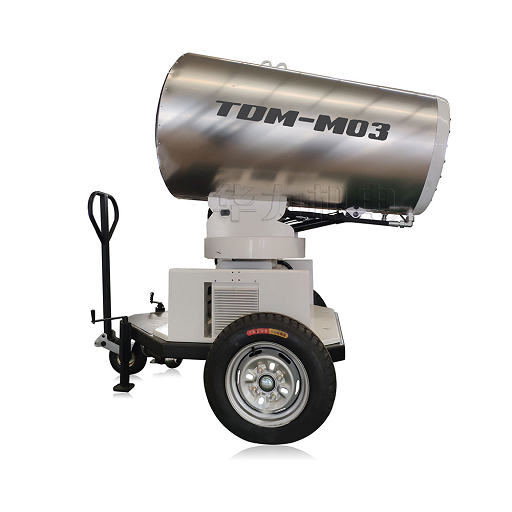

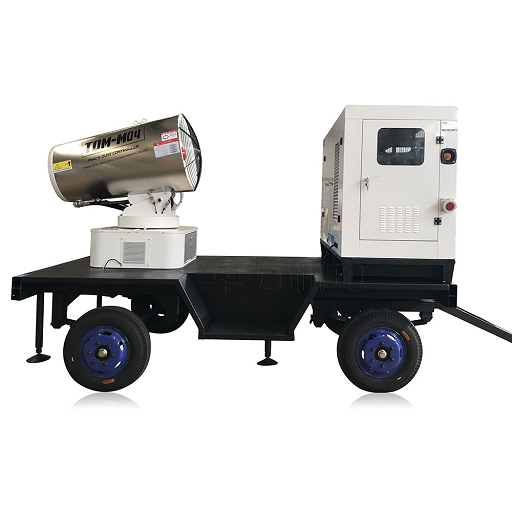

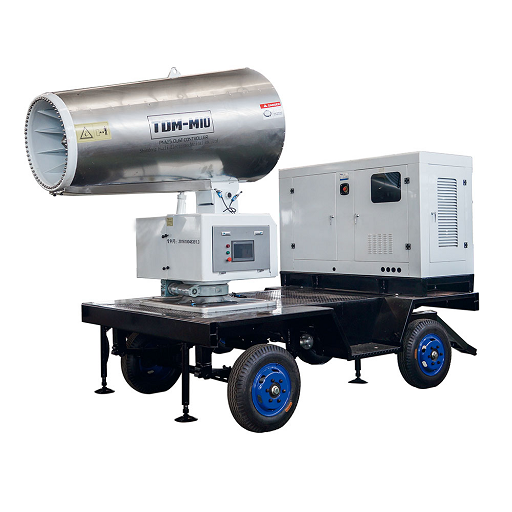

| Parameter | Trailer M03 | Trailer M04 | Trailer M06 | Trailer M10 |
|---|---|---|---|---|
| Spray Range | 30m | 40m | 60m | 100m |
| Total Power | 10 kW | 10.2 kW | 27.5 kW | 39 kW |
| Water Consumption | 3 m³/h | 3.2 m³/h | 8.5 m³/h | 9.5 m³/h |
| Control Method | Electric Control | Remote / Touch Panel | PLC | Remote / Touch Panel |
| Weight (kg) | 520 | 550 | 1200 | 1370 |
| Dimensions (L×W×H, mm) | 1550×1030×1600 | 1550×1030×1600 | 1900×1125×2365 | 2435×1155×2360 |
| Noise Level (@ 7.5m) | 70 dB | 70 dB | 80 dB | 82 dB |
| Fan Power | 5.5 kW | 7.5 kW | 18.5 kW | 30 kW |
| Water Pump Power | 2.2 kW | 2.2 kW | 7.5 kW | 7.5 kW |
| Nozzles Quantity | 36 pcs | 39 pcs | 78 pcs | 90 pcs |
| Generator Set | 20 kW | 15 kW | Contact Us | 50 kW |

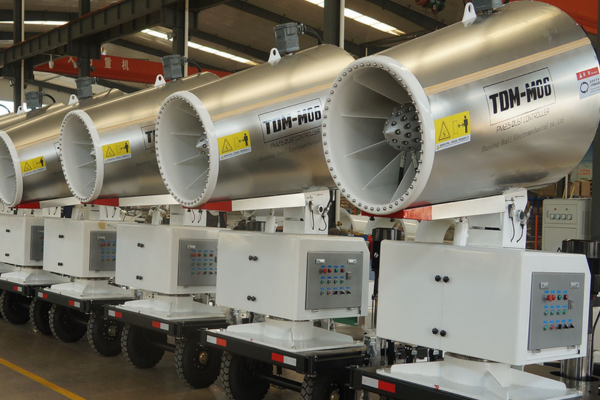

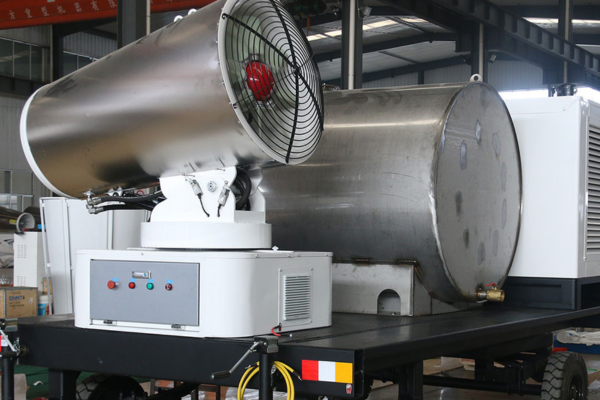

The core of the system, featuring a powerful fan and high-efficiency nozzles for long-range dust suppression.

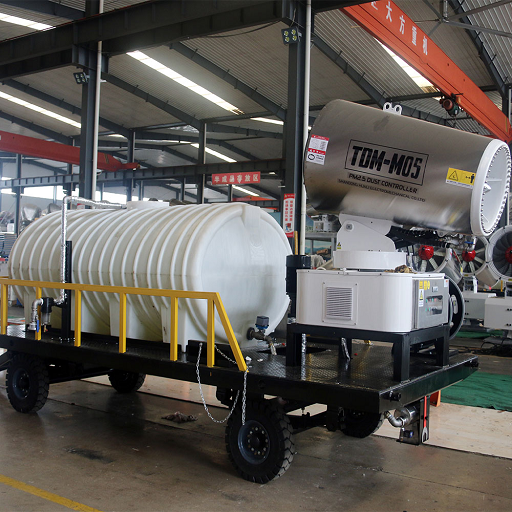

Allows for hours of autonomous operation without needing a direct water connection, perfect for remote sites.

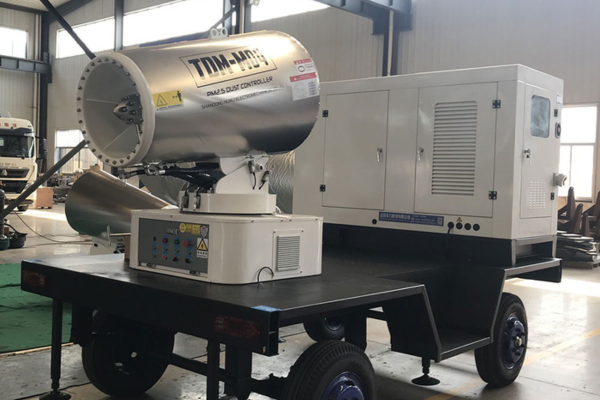

A reliable onboard generator provides all necessary power, making the entire unit self-sufficient and ready for deployment anywhere.
A robust, road-worthy chassis with durable tires and a standard tow hitch for easy transportation between job sites.
Features heavy-duty jack stands for stable setup on uneven ground and houses the central control panel for operation.
Our partners' success stories highlight our commitment to quality, reliability, and outstanding support.
Ready to bring flexible and effective dust suppression to your job site? Contact our team for a competitive quote on our mobile dust suppression equipment.
A: The key advantage is flexibility. A dust suppression trailer can be easily moved to multiple locations on a large site or transported between different projects, providing effective dust control exactly where it’s needed, when it’s needed.
A: Setup is designed to be quick and simple. After towing the unit into position, you deploy the heavy-duty, adjustable jack stands to create a wide, stable footprint, ensuring safe operation even on uneven ground.
A: No. Our standard configuration includes an integrated diesel generator set that provides all the necessary power for the fan and pump, making the unit completely self-sufficient and ideal for sites without available grid power.
A: The trailer can be equipped with a large onboard water tank, allowing for hours of autonomous operation. Alternatively, for continuous use, it can be connected directly to a hydrant or external water tanker.
A: The primary factor is matching the cannon’s spray range to the size of your work area. You should also consider the trailer’s overall size and weight for transport and site accessibility. Our team can help you select the best fit.
A: Yes. The system is designed for efficient operation. With the wireless remote control, a single operator can safely manage all functions, including rotation, tilt, and spray, from a distance or from within a vehicle cabin.
A: Absolutely. Its rapid deployment and self-contained design make it a perfect solution for temporary applications like controlling dust or providing cooling at festivals, concerts, and other outdoor events.
A: When you contact our sales team, simply specify your requirements. We will provide a detailed, no-obligation quote that breaks down the fog cannon price for the standard unit and any optional features like the onboard water tank.
