Dust Suppression Solution
ShanHua is a leading china mist cannon manufacturer, engineering advanced solutions for effective mist cannon dust suppression. Our Fixed Fog Cannon systems utilize premium components and superior atomization technology to neutralize airborne particles. We deliver reliable, automated dust and odor control for the most demanding industrial and environmental applications, ensuring a cleaner and safer worksite.

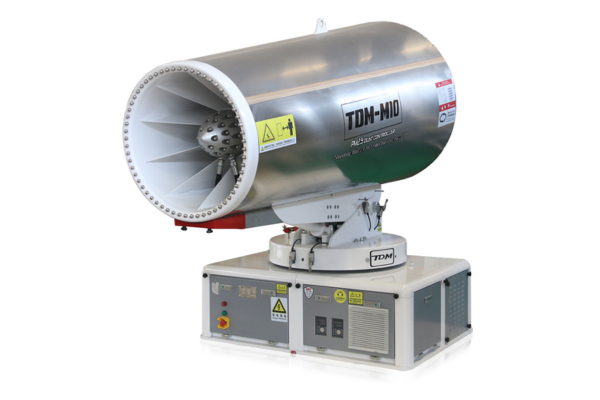

A Stationary Mist Cannon is a specialized dust suppression system designed for fixed installation at a specific location, such as a quarry, industrial yard, or demolition site. It operates by projecting a high-velocity stream of finely atomized water droplets over a large area. These microscopic droplets merge with airborne dust particles, making them heavier. This increased weight causes the dust to fall out of the air, effectively cleaning the environment at its source and improving local air quality.
Our mist cannons are engineered with premium components and intelligent features to deliver superior performance, higher efficiency, and greater reliability, setting a new standard for dust suppression technology.
We use American Thumb brand nozzles and a high-pressure Nanfang pump to create finer, more concentrated fog particles for maximum dust capture efficiency.
Our optimized fan design produces a stronger, more focused air stream to project the mist further, all while maintaining a lower operational noise level.
The entire unit is constructed from high-grade stainless steel, offering exceptional durability and a more exquisite, professional appearance for any facility.
Featuring intelligent touch panel/remote control, with automatic self-reset and draining functions for simplified, low-maintenance operation.

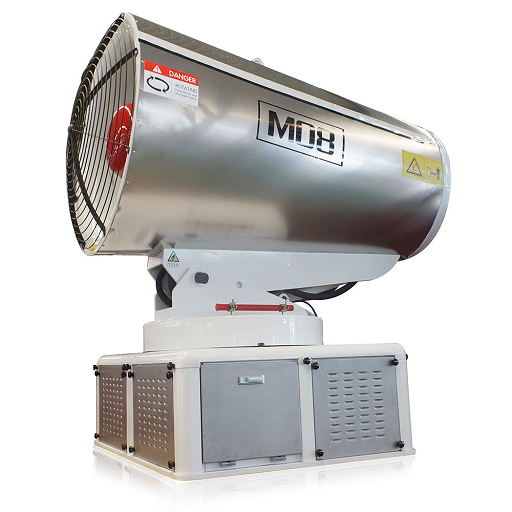

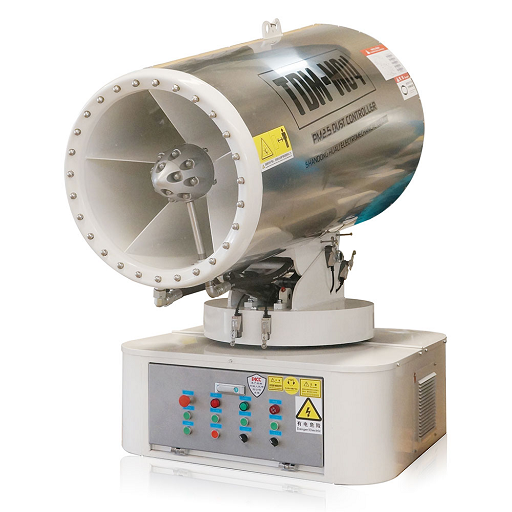

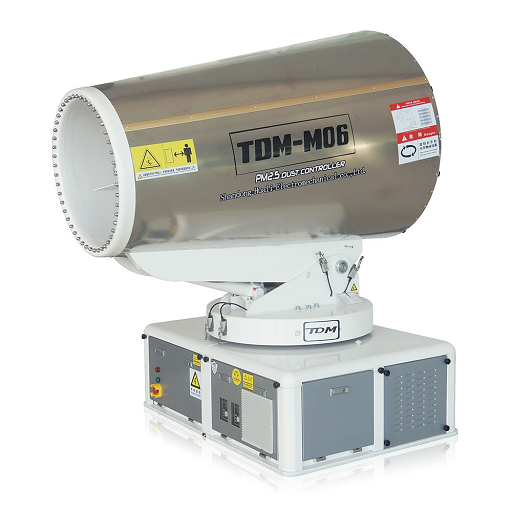

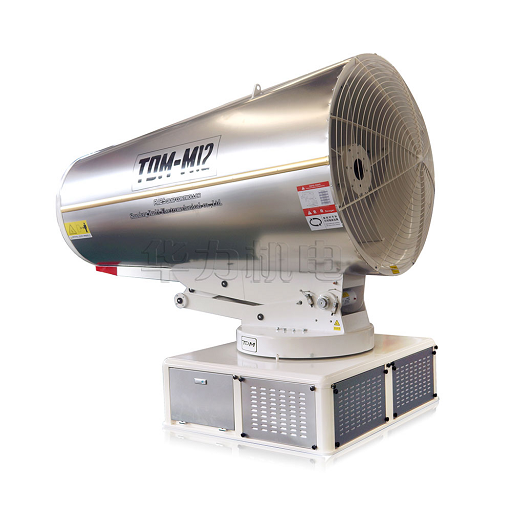

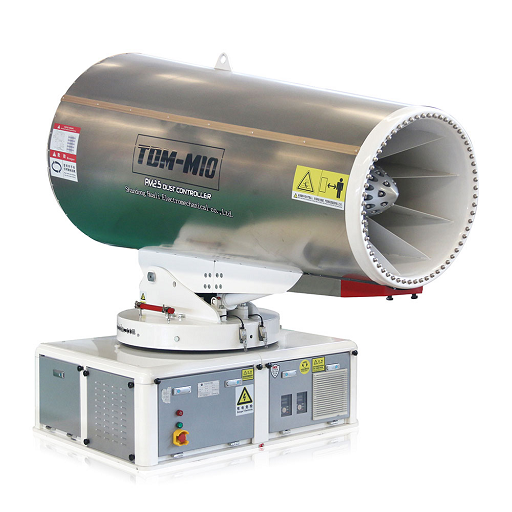

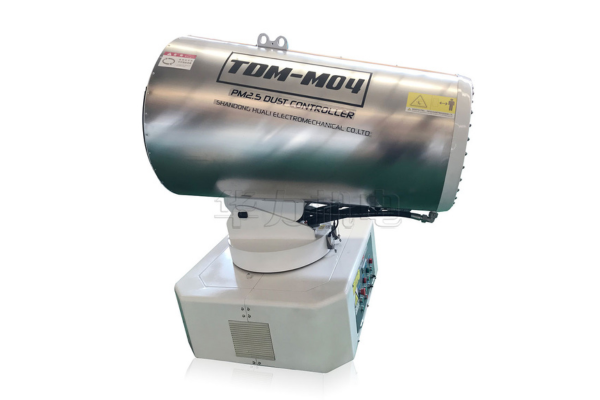

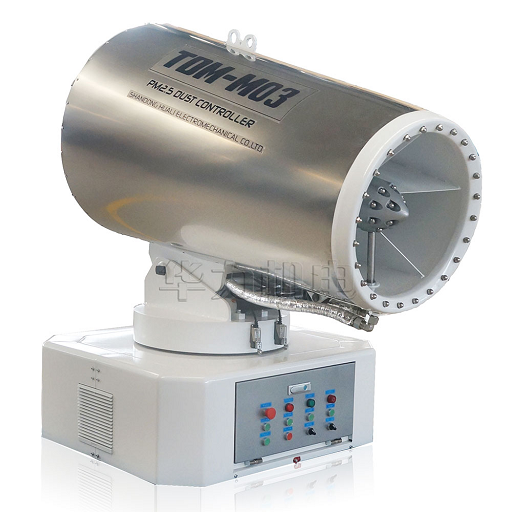

| Parameter | M03 | M04 | M06 | M08 | M10 | M12 |
|---|---|---|---|---|---|---|
| Spray Range | 30m | 40m | 60m | 80m | 100m | 120m |
| Total Power | 8.2 kW | 12 kW | 27.5 kW | 31 kW | 39 kW | 67.5 kW |
| Water Consumption | 3.2 m³/h | 3.2 m³/h | 8.5 m³/h | 9.5 m³/h | 9.5 m³/h | 12 m³/h |
| Control Method | Electric Control | PLC | PLC | PLC | PLC | PLC |
| Weight (kg) | 540 | 550 | 1200 | 1250 | 1370 | 2700 |
| Dimensions (L×W×H, mm) | 1555×1098×1699 | 1550×1030×1600 | 1900×1125×2365 | 2000×1155×2360 | 2435×1155×2360 | 3100×1700×2500 |
| Noise Level (@ 7.5m) | 70 dB | 70 dB | 80 dB | 80 dB | 82 dB | 82 dB |
| Fan Power | 5.5 kW | 7.5 kW | 18.5 kW | 22 kW | 30 kW | 55 kW |
| Water Pump Power | 2.2 kW | 2.2 kW | 7.5 kW | 7.5 kW | 7.5 kW | 11 kW |
| Nozzles Quantity | 39 pcs | 39 pcs | 78 pcs | 90 pcs | 90 pcs | 100 pcs |
Constructed from high-grade stainless steel for superior corrosion resistance, durability, and an exquisite appearance.
Features American Thumb brand nozzles to create an ultra-fine, concentrated mist for maximum dust capture.
Our optimized fan design generates a powerful, long-range air stream with surprisingly low operational noise.
Allows for precise remote-controlled horizontal rotation and vertical tilt to target specific dust source areas.
Houses premium Schneider electrical components, ensuring stable performance and providing reliable, intelligent system control.
Our partners' success stories highlight our commitment to quality, reliability, and outstanding support.
Ready to improve your site’s air quality with a reliable water mist cannon? Contact our expert team today for a competitive fog cannon price.
A: You will need a stable, level foundation (typically concrete) to mount the unit, as well as access to a suitable power supply and a consistent water source. Our technical team can provide detailed guidance based on the specific model you choose.
A: The key is the microscopic droplet size. Our mist cannon atomizes water, creating a fine fog that binds with airborne dust particles. Hoses produce large droplets that mainly wet the ground, while our system effectively cleans the air itself.
A: No. The system is designed for dust suppression, not saturation. The fine mist droplets either evaporate after capturing dust or settle gently without causing pooling or muddy conditions, maintaining a safe and accessible worksite.
A: Our units are designed for ease of use, featuring an intuitive touch panel on the control cabinet. For maximum flexibility, they can also be operated via a remote control, allowing you to manage the system from a distance.
A: While very strong winds can affect any misting system, our cannons are designed with powerful fans to create a focused air stream. A light to moderate crosswind can even be used strategically to help carry the mist and extend the dust suppression coverage over a wider area.
A: Yes. The fine mist is highly effective at odor control by capturing and neutralizing odor molecules, making it ideal for waste management sites. It also provides a significant evaporative cooling effect in hot, open-air environments.
A: Routine maintenance is straightforward. It primarily involves periodically checking and cleaning the main water filter to prevent nozzle clogs and visually inspecting the system for any leaks, ensuring long-term, reliable operation.
A: The best model depends on the size of your area and the type of dust. Contact our sales team with your site details, and we can recommend the most effective model and provide a detailed, competitive fog cannon price quote for you.
