Truck Mounted Mist Cannon
ShanHua, a leading mist cannon vehicle factory, delivers fully integrated fog cannon truck solutions. We combine a high-performance misting cannon with a reliable truck chassis and an onboard power system to create a single, efficient unit. Designed for municipal street washing, industrial dust control, and large-scale environmental management, this is the definitive tool for mobile air quality control.

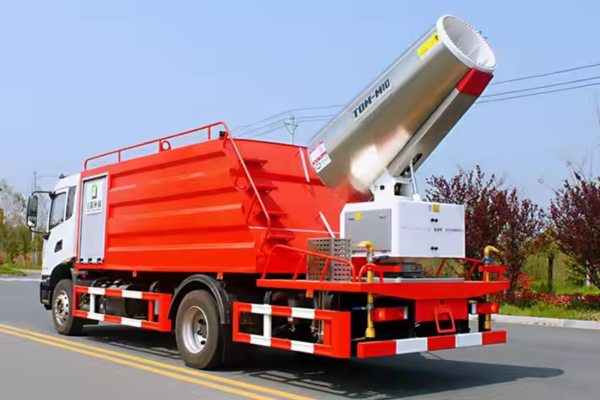

A fog cannon truck is a specialized vehicle where a powerful fog cannon machine, a water tank, and a power system are all seamlessly integrated onto a single, road-legal truck chassis. Unlike trailer-based systems, the entire unit is designed and built to function as one, offering superior mobility, on-road speed, and the convenience of in-cab controls for a highly efficient, all-in-one dust suppression solution.
Our trucks are engineered from the chassis up as fully integrated systems, delivering superior performance, operator convenience, and unmatched mobility for large-scale dust and environmental control.
We have a mist cannon vehicle factory, . Every component is designed to work in perfect synergy for maximum reliability.
Our trucks are built on road-legal chassis, allowing for rapid deployment between sites using public roads without special transport.
Operators can manage all misting functions from the safety and comfort of the truck's cab, increasing efficiency and operational awareness.
The water tank, cannon, and power system are positioned for optimal balance and vehicle stability, ensuring safe on-road and off-road handling.

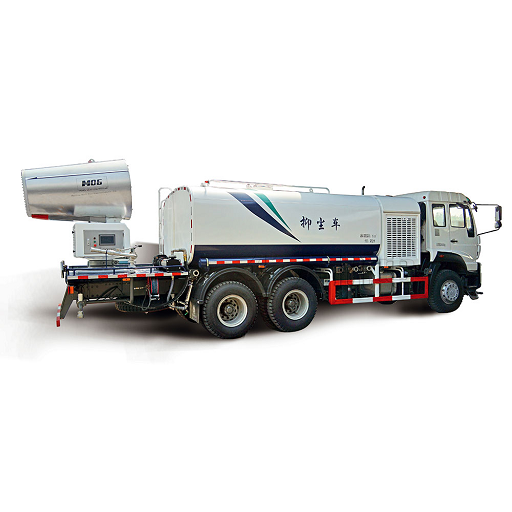

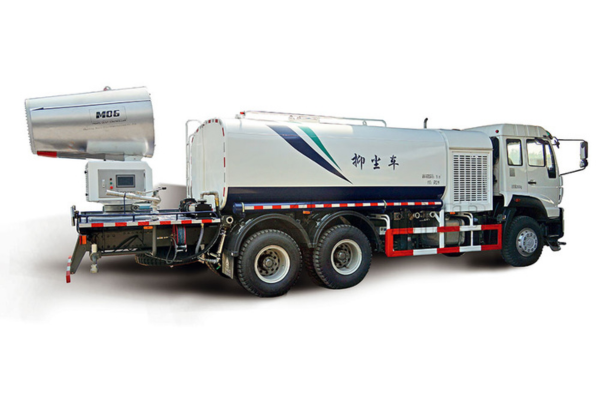

A versatile and maneuverable truck, perfect for municipal street cleaning and dust control in medium-sized industrial or construction sites.

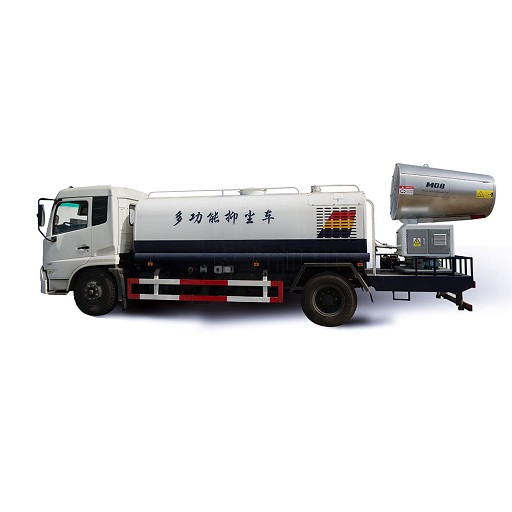

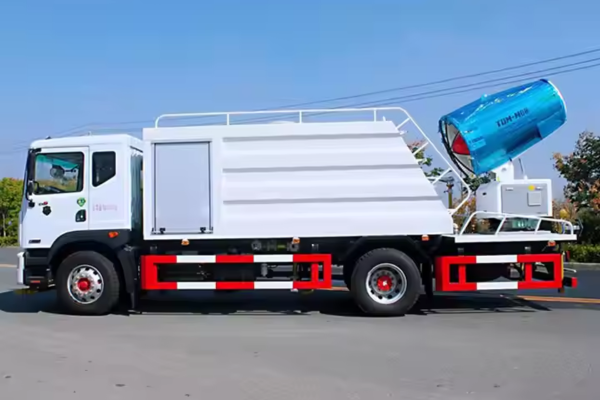

A powerful, high-capacity solution for large-scale projects, including major industrial parks, ports, and environmental management tasks.
| Parameter | Mist Cannon Truck M06V | Mist Cannon Truck M08V |
|---|---|---|
| Spray Range | 60m | 80m |
| Cannon Power | 27.5 kW | 31 kW |
| Water Consumption | 8.5 m³/h | 9.5 m³/h |
| Control Method | Remote / Touch Panel | Remote / Touch Panel |
| Weight (Cannon Only) | 1200 kg | 1250 kg |
| Rotation Angle | ±120° / ±180° | ±120° / ±180° |
| Pitching Angle | -10° to 55° | -10° to 55° |
| Nozzles Quantity | 78 pcs | 90 pcs |
| IP Grade | IP55 | IP55 |
| Power Supply | AC375V~415V, 50Hz | AC375V~415V, 50Hz |
| Truck Chassis | Customizable | Customizable |
The core of the system, featuring a powerful fan for long-range, effective dust suppression.
Allows for extended, continuous operation without needing to frequently refill from an external water source.
Houses the dedicated generator and all electrical systems, providing reliable, self-sufficient power for the entire unit.
Provides excellent on-road mobility and a safe, comfortable cabin with integrated controls for the operator.
A dedicated, secure platform that allows for safe access to the cannon for maintenance and inspection.
Our partners' success stories highlight our commitment to quality, reliability, and outstanding support.
Ready to deploy an all-in-one dust control solution? Contact our team to discuss your custom fog cannon truck and receive a detailed quote.
A: The primary advantage is its road-legal mobility and full integration. A fog cannon truck can travel at normal highway speeds between distant sites, offering faster deployment and greater convenience than towing a trailer.
A: It excels at tasks requiring frequent travel on public roads, such as municipal street washing, servicing multiple sites within a large industrial park, or for rapid environmental response teams.
A: Our trucks can be configured with either a dedicated onboard generator for independent power, or a Power Take-Off (PTO) system that draws power directly from the truck’s main engine for a highly integrated solution.
A: Yes, the system is highly versatile. It’s an excellent tool for large-scale street washing, public area disinfection, and providing evaporative cooling in hot environments, making it a multi-purpose municipal asset.
A: Water tank capacity is customizable based on the chosen truck chassis, typically ranging from 5 to 12 tons (5,000 to 12,000 liters). This allows for several hours of continuous operation before refilling is needed.
A: The system requires two types of care: standard vehicle maintenance for the truck chassis and its engine, and routine checks of the fog cannon machine components like the water pump and nozzles.
A: Our engineering process focuses on optimal weight distribution. The tank and cannon are positioned to maintain a low center of gravity, ensuring the vehicle remains stable and safe during on-road travel and off-road use.
A: The final fog cannon price depends on the cannon model, truck chassis, and any customizations. Contact our sales team with your requirements for a comprehensive, no-obligation proposal.
