Whenever it involves operating industrial machinery, commercial establishments, or large-scale projects, 3-phase diesel generators provide a relevant and efficient solution. Yet determining the right generator for one’s needs with all those options and the technical aspects, considering kW ratings, voltage adaptability, and load capacity, can get quite challenging indeed. That’s why the guide is prepared to make the task easy. Whether delving into the workings of generators, weighing their pros and cons, or ensuring how to find the right size for power generation, we will provide you with sufficient information to make an informed choice. Later on, you will learn about the key elements that define a 3-phase diesel generator and the reasons why it forms the core of highly resilient power systems.

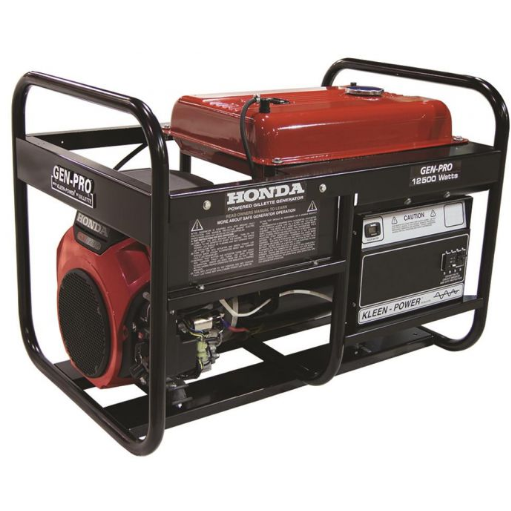

Understanding Diesel Generators
Diesel-powered generators convert diesel fuel energy into electrical energy. To explain this process further, they utilize a diesel engine to rotate an alternator that generates electrical power. These generators are preferred due to their reliability, effectiveness, and durability, and therefore find application in a variety of uses, ranging from standby power supply for homes and businesses to emergency and primary power for industrial operations. Diesel generators are ideal for settings that require an uninterrupted power supply, i.e., operating for extended periods with minimal maintenance.
What is a Diesel Generator?
A diesel-powered system converts energy from motion into electrical energy with the help of a diesel engine and an alternator. Diesel generators are proud providers of an excellent performance setup, and hence are ideal for areas where an uninterrupted power supply is demanded. They work by burning diesel fuel in the engine, which then runs the alternator to generate electrical power. These generators come in various sizes, ranging from small, portable units to large, industrial-grade ones that can provide power for extensive operations. Users primarily use diesel generators as a power backup or are located in remote areas without access to grid electricity. According to current trends, a diesel generator remains a reliable choice since newer designs that prioritize fuel efficiency, control emissions, and minimize operating costs are also environmentally conscious.
Components of a Diesel Generator
The usage of various components ensures the generator delivers reliable power. These components primarily may include the following:
- Diesel Engine – Considered the heart of the generator because the various components of power generation processes consume diesel fuel to generate mechanical energy. An engine can vary in size and power according to the areas in which it is used-small engines for home use, large engines for industrial purposes.
- Alternator – It converts mechanical energy exerted on the shaft of the diesel engine into electrical energy through electromagnetic induction; thus, it is a crucial process in power generation.
- Fuel System- This system stores diesel fuel and supplies it to the engine. It incorporates the fuel tank, pump, and injectors to ensure the engine operates uninterrupted and smoothly.
- Cooling System – Such heat generation requires control, and hence, the cooling system maintains the engine at its working temperature. The cooling system may consist of radiators and fans.
- Exhaust System-The exhaust system disposes of materials produced during the engine process of burning diesel fuel, together with the combustion gases that include carbon dioxide; a system to ensure that the engine operates safely to pollution.
- Control Panel- Acting as the generator’s interface, the control panel enables users to monitor generator performance and adjust settings to ensure efficient and safe operation.
- Battery Charger-The battery charger is an apparatus that serves to keep the battery of the diesel generator fully charged because the diesel generator needs a fully charged battery to start the engine.
- Lubrication System- This system lubricates the moving parts of an engine, thereby reducing friction and increasing the longevity of the generator and its components.
- Voltage Regulator- The voltage regulator is necessary to provide a steady and consistent flow of electrical energy to sensitive equipment.
An understanding of these components plays a crucial role in maintaining and operating a diesel generator efficiently. Modern designs utilize the latest technology to enhance these components for reliability and minimize environmental impacts.
Types of Diesel Generators
Diesel generators may be portable, inverter, standby, open-type, silent-type, containerized, and mobile trailer-mounted, each being made for specific applications.
| Type | Feature | Use Case |
|---|---|---|
| Portable | Mobile, compact | Outdoor, temporary |
| Inverter | Stable, quiet | Sensitive devices |
| Standby | Auto backup | Critical facilities |
| Open-Type | Easy maintenance | Indoor setups |
| Silent-Type | Low noise | Noise-sensitive |
| Containerized | Outdoor-ready | Industrial sites |
| Mobile | High mobility | Remote locations |

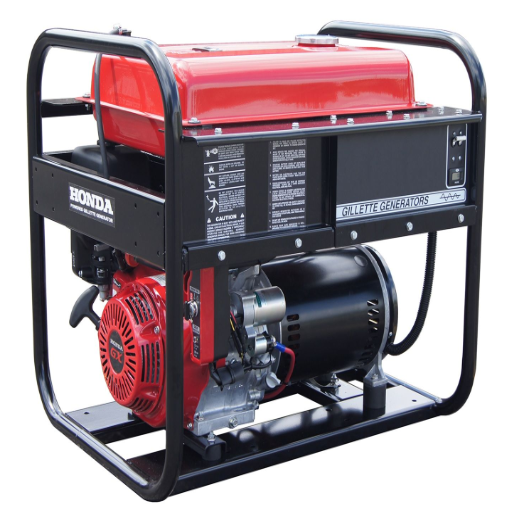

3-Phase vs Single-Phase Generators
The distinction between 3-phase and single-phase generator systems thus lies in the fact that 3-phase machines distribute the electric power through three currents.
- 3-phase Generators: These machines work with three alternating currents arranged so that the phase difference between any two is 120 degrees. As such, heavy equipment is well served, whether industrially or commercially, with uninterrupted and efficient electrical power flow. Since 3-phase generators are more efficient under high-power demand, they lose less power while transmitting electricity over longer distances.
- Single-Phase Generators: These generators produce one AC voltage and are therefore used for running smaller loads, such as residential use or small commercial applications. They are simpler in design, cheaper as compared to 3-phase ones, and easy to maintain; hence, they suit minor power needs.
Depending on the application, power requirements, and load size, a decision must be made whether to choose 3-phase generators or single-phase generators.
Advantages of 3-Phase Generators
- Efficient Power Distribution: Power with 3-phase generators is distributed more evenly and efficiently compared to 1-phase systems. Therefore, the equipment operates more smoothly and loses less energy during transmission.
- High Power Output: The ability of generators to generate more power is a primary consideration for 3-phase generators, which can handle greater loads of industrial types and power.
- Compact Design: 3-phase generators tend to be more compact and lightweight for the same power output compared to single-phase models, thus saving installation space and cost.
- Lower Maintenance Cost: The lack of mismatched forces and vibrations means 3-phase generators experience less mechanical wear and tear, resulting in reduced maintenance and a longer lifespan.
- Industrial and Commercial Equipment Compatibility: Equipment and machinery, such as motors and transformers used in industrial and commercial settings, typically operate on 3-phase power to ensure optimal performance and efficiency.
Applications of 3-Phase Power
- Industrial-Based Manufacturing Facilities
In most large-scale factories, heavy machinery, such as conveyors, compressors, or assembly line equipment, is powered by three-phase power. Stability and efficiency are crucial for high-load operations that require uninterrupted starting and operation.
- Data Centers
3-phase power is used in modern data centers to deliver power efficiently to the servers, chillers, and other vital infrastructure. This ensures a smooth delivery of power and also minimizes any possible downtime.
- Commercial Buildings
Shopping malls, hospitals, and office buildings are commercial spaces where HVAC systems, elevators, lighting, and other utilities require 3-phase power due to their high demand.
- Renewable Energy Systems
For wind turbines and solar power installations, 3-phase generators are used to transmit power to the electricity grid efficiently, ensuring that renewable sources are not hindered.
- Transportation Infrastructure
Electrified railways, subways, and even charging stations for electric vehicles utilize 3-phase power to ensure smooth and reliable operations, particularly under heavy usage.
Comparing 3-Phase and Single-Phase Output
3-phase power maximizes efficiency and consistency while meeting the requirements of heavy loads. Conversely, single-phase power is simpler to operate and cheaper while being utilized for residential or light purposes.
| Parameter | 3-Phase | Single-Phase |
|---|---|---|
| Efficiency | High | Moderate |
| Consistency | Steady | Peaks/Dips |
| Voltage | 415V | 230V |
| Wiring | 3-4 wires | 2 wires |
| Use Case | Industrial | Residential |
| Cost | High | Low |
| Load | Heavy | Light |
Key Specifications of 3-Phase Diesel Generators
- Power Output
3-phase diesel generators produce higher power than their single-phase counterparts and are therefore ideal for industrial and heavy-duty applications.
- Voltage and Efficiency
The generators provide a constant voltage and are more efficient in power delivery, especially when running huge motors, machinery, and other energy-intensive installations.
- Load Distribution
A three-phase system also allows for an even distribution of load across the phases, which reduces the stress on the generator and smoothens its operation.
- Durability and Reliability
Such generators are durable and ensure a long service life and reliable performance, even under continuous working conditions or high-demand environments.
- Applications
They are used in factories, hospitals, data centers, and construction sites, among others, where consistent and high power output is required.
The convergence of these features enables 3-phase diesel generators to serve as a dependable power source for various applications.
Understanding kW and hp Ratings
The two most common units of power measurement are the kilowatt and the horsepower. The kilowatt is a unit of the metric system, representing 1,000 watts of electrical power; it is commonly used in electrical equipment and power generation. Conversely, horsepower is abreast with the traditional units primarily used in mechanics, having had its origin in the measurement of power produced by engines.
1 horsepower equals approximately 0.746 kilowatts. A 100-horsepower motor will provide about 74.6 kilowatts of power. Knowledge of these ratings helps in selecting equipment that is efficient and compatible with service in industrial and commercial applications.
Voltage and Current Considerations
Voltage and current are primary substances of any electrical circuit. Electric potential difference is the force that causes a charge to move through a circuit, whereas current is the movement itself. At the same time, Ohm’s Law states relationships among voltage, current, and resistance, and it says \( V = I \times R \), where \( V \) is voltage, \( I \) \(\)is current, and \( R\) is resistance. A delicate interplay of voltage and current is essential for the efficient and safe operation of electrical devices. Excessively high voltage can be harmful to components, while low voltage may hinder performance. Similarly, high current can cause overheating, and low current can lead to instability. Considering and maintaining this balance in the setup, engineers and electricians can custom-build systems to meet operational needs while also precisely satisfying standard safety requirements.
Loading and Output Efficiency
The loading and output efficiency describe a system’s ability to perform its functions with minimal energy loss while operating at maximum available performance. If engineers emphasize high-quality components and thoughtful design rationale, then efficiency can be improved enormously. Modern systems are often equipped with advanced technology options to achieve maximum reliability and energy efficiency; these options may include power optimization circuits or real-time monitoring.

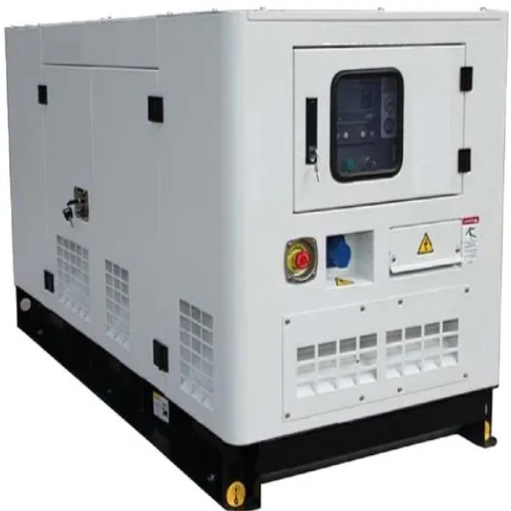

Choosing the Right 3-Phase Diesel Generator
When buying a 3-phase diesel generator, consider five essential points:
- Power Requirements – Determine the amount of power your application may draw. Prepare for the extra load in the future so that the generator is not put under one that is undersized or oversized.
- Efficiency and Fuel Consumption – Opt for a generator with efficient fuel consumption to minimize operational costs without compromising the generator’s reliability.
- Durability and Build Quality – Check for generators made from the best materials and components to ensure they will be reliable over the long haul, especially in demanding environments.
- Maintenance and Support – Models that offer easy maintenance and after-sales support are most suitable in terms of the availability of spare parts and technical support.
- Noise Level – Consider the noise output of the generator as it impacts whether it may operate near residential or sensitive areas.
By balancing these factors, you will have your generator working efficiently to meet your operational needs.
Factors to Consider When Buying
- Power Output
Ensure the generator provides adequate power to support all the devices, appliances, or tools you want to run. Calculate your total power needs and factor in the starting wattage, along with the running wattage, so that the generator has some extra room for safety and reliability choices.
- Fuel Type and Efficiency
Select the fuel type that best suits your needs: gasoline, diesel, propane, or dual-fuel options. Consider fuel efficiency and runtime to minimize operational costs. Diesels are usually more fuel-efficient over prolonged use, while gasoline is more readily available.
- Portability And Size
Size and portability should be considered depending on how and where the generator will be used. Smaller and more lightweight models make them suitable for a small type of application, such as camping; in contrast, larger models with wheels are well-suited for construction sites or as a home backup.
- Durability and Build Quality
Consider what constitutes a good-quality generator when exposed to rough environments. Generators with solid steel frames and weatherproof coatings are better suited for harsher environments.
- Safety
Look for automatic voltage regulation (AVR), spark arrestors, and low-oil shut-off mechanisms for added safety. These features prevent the generator from causing damage to either the devices connected to it or to itself.
Portable vs Stationary Generators
Portable generators are inexpensive, mobile, and suitable as a temporary power source, whereas stationary generators are ground-based, automatic, and fit for a long-term high-power solution.
| Parameter | Portable | Stationary |
|---|---|---|
| Cost | Low | High |
| Mobility | High | None |
| Installation | None/Minimal | Professional |
| Power Output | Limited | High |
| Operation | Manual | Automatic |
| Fuel | Gasoline/Propane | Natural Gas/Propane |
| Use Case | Temporary | Long-term |
Popular Generators for Sale
Power needs, portability, and price are all factors influencing market popularity for generators. According to recent statistics:
- Honda EU2200i Portable Generator
Being reliable and quiet, this generator is ideal for outdoor activities like camping and tailgating, as well as for mild household needs. It is equipped with inverter technology for a clean power supply, which prevents damage to sensitive electronics.
- Westinghouse WGen7500
This one is an average seller among homeowners, providing a full 7,500 running watts and a remote start. It also features some good safety measures, such as low oil detection, among others, making it a reliable backup for power.
- Champion 3800-Watt Dual Fuel Generator
This generator offers a dual-fuel option, allowing for use with either gasoline or propane, providing much-needed flexibility during power emergencies. It is RV-ready with intuitive, quick-touch controls.
- Generac GP8000E
Considering its excellent power generation capacity and electric start, this one remains on top for construction sites and home emergency backup usage. It is designed to withstand harsh conditions with a sturdy steel frame.
- Jackery Explorer 1000 Portable Power Station
As a solar-friendly and silent option, it is appreciated for its environmentally friendly nature. It is portable and is ideal equipment for outdoor activities or running a few small appliances.
As we can observe, these generators have been standing tall due to their features and consumer ratings in their respective categories. When purchasing a generator, consider your specific needs first and then select a model accordingly.
Reference Sources
- Design of Direct Drive Dual 3-phase Permanent Magnet Generator for Ship-Mounted Wind Power Applications Considering Redundancy
- Authors:Â Young-Ho Hwang, In-Songseok, Kyung-Won Jeon, Byung-Hee Kang, Seok-Won Jung, Sang-Yong Jung
- Publication Date:Â May 17, 2024
- Conference:Â 27th International Conference on Electrical Machines and Systems (ICEMS)
- Citation Token: (Hwang et al., 2024, pp. 2957–2961)
- Summary:
- This paper presents a novel design for a dual 3-phase permanent magnet generator intended for ship-mounted wind power applications. The design emphasizes redundancy to ensure uninterrupted power generation.
- Methodology: The authors conducted electromagnetic and thermal analyses to validate the system’s performance under simulated offshore wind conditions. The design aims to enhance the efficiency of maintenance and management.
- Key Findings:Â The proposed generator design is effective in utilizing wind energy during ship operations, demonstrating potential for improved reliability and efficiency in offshore applications.
- Multi-Objective Optimization of URLLC-Based Metaverse Services
- Authors:Â Xinyu Gao, Wenqiang Yi, Yuanwei Liu, L. Hanzo
- Publication Date:Â July 25, 2023
- Journal:Â IEEE Transactions on Communications
- Citation Token: (Gao et al., 2023, pp. 6745–6761)
- Summary:
- This study focuses on optimizing the performance of a virtual synchronous generator (VSG) in the context of ultra-reliable low-latency communication (URLLC) for metaverse services.
- Methodology:Â The authors developed a twin-stage central controller to localize users and support communication between the base station and users. They employed a meta-learning-based algorithm to optimize the system’s performance.
- Key Findings: The proposed VSG control strategy effectively manages power output in response to changes in grid frequency and voltage, showcasing its adaptability and fault-tolerant capabilities.
- Analysis of Damper Transient Currents in Salient-Pole Synchronous Generator With Skewed Armature Slots Considering Interbar Currents
- Authors:Â Y. Zhan, Kangkang Kong, Guorui Xu, Jinping Kang, Haisen Zhao
- Publication Date:Â January 1, 2019
- Journal:Â IEEE Transactions on Industry Applications
- Citation Token: (Zhan et al., 2019, pp. 336–343)
- Summary:
- This paper investigates the behavior of damper interbar currents in salient-pole synchronous generators with skewed armature slots, particularly under fault conditions.
- Methodology:Â The authors developed a two-dimensional finite-element model to analyze the transient currents during a 3-phase sudden short circuit. They validated their model against experimental results.
- Key Findings:Â The study provides insights into the electromagnetic performance of generators, highlighting the impact of design variations on transient current behavior, which is crucial for improving generator reliability.
Frequently Asked Questions (FAQs)
What is the best 3-phase generator for continuous power?
The best 3-phase generator for continuous power typically depends on your specific needs, including power output and fuel type. Diesel generators are often favored for their reliability and efficiency, especially in industrial settings. For smaller applications, a portable generator with a power rating of around 15 kW can provide adequate power while being cost-effective.
How does a 3-phase generator’s output voltage affect performance?
The output voltage of a 3-phase generator has a significant impact on its performance and suitability for various applications. Generators can produce various voltages such as 240V, 380V, or 480V. Higher voltage outputs reduce current for the same power, resulting in lower losses and making them ideal for industrial use, where long cable runs are common.
What are the key features of a diesel generator?
Key features of a diesel generator include high efficiency, durability, and the ability to provide substantial power output. Diesel generators typically have a longer lifespan compared to petrol-powered generators and are capable of handling heavy loads, making them suitable for industrial applications.
What is the importance of the power factor in 3-phase generators?
The power factor is crucial in three-phase generators, as it indicates the efficiency with which electrical power is converted into sound work output. A higher power factor suggests a more efficient use of electricity, which is crucial for reducing energy costs and optimizing generator performance.
How can I troubleshoot common issues with 3-phase generators?
Troubleshooting common issues with 3-phase generators involves checking the fuel supply, ensuring proper connections, and inspecting filters for clogs. Unbalanced load conditions can also cause problems, so it’s essential to verify that the load is evenly distributed across all phases.
What is the typical amperage for a diesel generator?
The typical amperage for a diesel generator depends on its power rating. For example, a 100 kW diesel generator may deliver approximately 150 amps at a voltage of 400 V. It’s essential to calculate the appropriate amperage based on the required output voltage and power factor to ensure safe and efficient operation.
Are portable generators as reliable as stationary generators?
Portable generators can be reliable for temporary power needs, but stationary generators are generally more robust and designed for continuous use. Stationary generators typically have higher power ratings and are better suited for industrial applications where a reliable power supply is essential.
What should I consider when buying a new generator?
When purchasing a new generator, consider factors such as fuel type (diesel vs. gasoline), power output (kW or kVA), and whether you require a portable or stationary model. It’s also essential to evaluate the cost-effectiveness, maintenance requirements, and the generator’s ability to handle your specific power needs, including starting current and full load capabilities.
What are the advantages of using air-cooled generators?
Air-cooled generators offer several advantages, including lower maintenance costs and a more straightforward design compared to liquid-cooled models. They are typically lighter and easier to transport, making them an excellent choice for portable applications where space and weight are considerations.
