From the moment the power went out, it put a wrench in daily life, forcing you to rush to save some appliances and keep the house comfortable. Those are the moments when a portable generator can make a difference. Here, you will learn how to use a portable generator to power your house so you will not be caught off guard during an emergency or when you want to live off-grid. Safety tips and setup instructions will be provided to ensure proper and efficient device use.

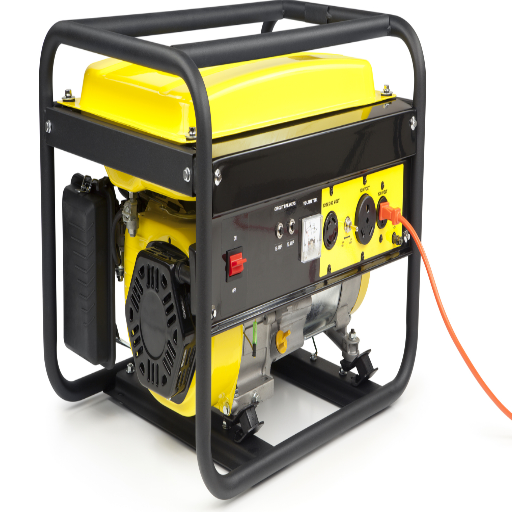

Understanding the Basics of Generators

Understanding the Basics of Generators
Understanding the Basics of Generators

Generators convert mechanical energy into electrical energy to provide power when the main supply is off. They run by burning up some energy on a fuel basis, which can come in gasoline, diesel, or propane; this is then channeled to an engine, which powers an alternator to produce electric power. Operators can be found in most portable generators, which have an outlet to plug in appliances or extension cords, making them a very flexible power solution. Choosing the right era concern should be focused more on your power needs; that is, if it can handle the total wattage load of the devices and appliances you intend to plug into it.

What is a Portable Generator?

Portable generators are multi-use machines that supply electrical power temporarily during loss of control, emergencies, or simply a lack of access to a standard power supply. The data speaks: interest in portable generators is booming as people become more concerned about natural disasters or begin pondering living off-grid. These generators generally carry a variety of power ratings for different needs-from powering small household appliances to energizing larger construction equipment. They are smaller, easily transported, and available in various fuel options like gas, diesel, and propane. New technologies make newer models the most efficient, quiet, and environmentally friendly generators conceivable.

How Does a Generator Work?

A generator converts mechanical energy into electrical energy through electromagnetic induction. For example, the fuel-powered engine would rotate the rotor within the magnetic field to produce electricity. The engine, which burns fuel like gasoline, diesel, or propane, creates motion transmitted to the alternator. Then the rotor spins around a stationary magnetic field in the alternator, producing an electrical current. This current is controlled and regulated by a voltage regulator to make the output usable and consistent. Modern generators have almost certainly undergone the addition of inverter technology, ensuring clean power for sensitive electronic devices such as smartphones and laptops.

Types of Generators Available

Generators are of such variety that they constitute standby, portable, inverter, industrial, gasoline, diesel, natural gas, propane, solar, hydrogen, and more for the installation and utilization of any specific purpose.

Type

Best Use

Fuel

Size

Eco-Friendly

Noise

Standby

Home/Business

Diesel/Natural Gas/Propane

Large

Moderate

Moderate

Portable

Camping/Tools

Gasoline/Diesel/Propane

Small

Low

High

Inverter

Electronics

Gasoline/Diesel

Compact

Moderate

Low

Industrial

Factories/Plants

Diesel/Natural Gas

Very Large

Low

High

Gasoline

Short-Term Use

Gasoline

Medium

Low

High

Diesel

Long-Term/Cold

Diesel

Medium

Low

Moderate

Natural Gas

Continuous Power

Natural Gas

Medium

High

Low

Propane

Reliable Standby

Propane

Medium

Moderate

Moderate

Solar

Eco-Friendly

Solar

Medium

High

Silent

Hydrogen

Labs/Emergencies

Hydrogen

Medium

High

Low

Powering Your Home with a Portable Generator

Powering Your Home with a Portable Generator
Powering Your Home with a Portable Generator

A portable generator can be a convenient way to power your home in a blackout situation. Behind the use of the portable generator lies the principle that it must be kept outside in an area with ventilation to avoid the build-up of carbon monoxide. Connect essential appliances directly to the generator with heavy-duty extension cords, or use a transfer switch for its safe and efficient connection to your home’s electrical wiring system. Make sure you select a generator of suitable wattage for your use after calculating the combined wattage requirements of the devices that you will be running. Follow all the manufacturer’s instructions for correct and safe operation and maintenance.

How to Connect a Portable Generator to Your Home

  • Calculate Your Power Needs

Make a list of all the appliances and other devices that you want to power with the generator. Compute the total wattage required, ensuring that the portable generator can handle the weight of the combined loads.

  • Select Your Location

The generator should be set up outside, away from windows, doors, or vents by at least 20 feet, to prevent carbon monoxide poisoning. It should always be kept on a level, dry surface; otherwise, risks arise.

  • Using a Transfer Switch

Connecting your generator to your house electrical system with a transfer switch is the safest and most efficient method. The transfer switch prevents backfeeding into the grid, which would otherwise endanger utility workers and possibly damage your generator. Have the transfer switch installed by a licensed electrician.

  • Connect Generator

Use the heavy-duty power cord recommended by the manufacturer to connect the generator to the transfer switch’s inlet. Prior to connecting the cables, confirm that all connections are tight and that the generator is switched off.

  • Start the Generator

Starting a generator is done according to its particular instructions. After the generator is running smoothly, switch on the circuits on the transfer switch panel that you intend to power in your house.

  • Test and Monitor Operation

Once the generator starts supplying the desired appliances, monitor the operation to ensure it runs smoothly and refuel when necessary, considering all safety practices. Never refuel a generator while running or even if it is hot to avoid fire hazards.

The steps described above ensure that you safely and efficiently connect your portable generator to your home as a backup power source during an outage.

Using Extension Cords Safely

Prioritizing safety using an extension cord with a portable generator helps avert hazards like electrical shock or fire. Depending on the convenience or preference, one may select the best one rated for outdoor usage and meeting or exceeding the power requirements of the appliances connected thereto. Such extension cords should contain a ground plug and an adequate wire gauge to carry the generator output without overheating. Never use a cord with visible damage, such as cracks or missing pieces, and always try and keep the connections dry to reduce the risk of electrocution. Additionally, avoid running extension cords under any rugs or through doorways, as exposure to heat will affect their ability to work and ensure safe use. The above are some guidelines to efficiently and safely use extension cords during power outages.

Powering Equipment with a Portable Generator

Operating a portable generator can soften the inconvenience in the case of a power failure. Yet, operation must be on sound footing to avert exposure to dangers, including carbon monoxide poisoning and electrical or fire hazards. These are established guidelines and essential information with which you can power your equipment safely:

  • Keep it outdoors

One should ensure a reasonable 20-foot distance between the generator and his/her house, opening, or vent to escape carbon monoxide build-up. The CPSC office of the government has an unfortunate statistic that more than 70 people die in the U.S. every year from carbon monoxide poisoning due to generators.

  • Check on proper grounding

Avoid all electrical shock hazards and ground the generator per the manufacturer’s instructions. If it were grounded otherwise, dangerous situations might arise due to electricity erroneously flowing through, creating risks that could cause injury.

  • Choose Extension Cords Well

When connecting your equipment, the cords must be high-quality, heavy-duty, and rated for outdoor use. The cords’ current-carrying capacity must also correspond with the generator’s wattage capacity to avoid overheating or overloading. Most portable generators range from 2,000 to 10,000 watts, so check out your appliances’ power requirements and the generator’s total output capacity.

  • Don’t overload a generator

Add the power wattages of the appliances intended to be used once to ensure the total wattage does not exceed the generator’s capacity. For example, a refrigerator might use up to 600 watts, and a space heater could use up to 1,500 watts. The consequence of overloading is that the generator shuts down, wrecking the devices connected, too, on occasion. Most modern generators have circuit breakers that protect against overload, but it is advisable to monitor usage manually.

  • Storage and Refueling with Safety

For safety, keep the fuel stored in approved containers with labels far away from the generator and the living areas. When refueling, make sure the generator is switched off and has had adequate cooling down time to prevent accidents. Gasoline loses its quality over time; hence, its life can be prolonged by using a stabilizer.

  • Regular Maintenance

A well-maintained generator provides top-notch performance and better longevity. Keep changing the generated oil and filters according to schedule while also checking up on the occasional need for spark plug replacement. According to MarketWatch, newer portable inverter generators provide much longer maintenance intervals and quieter operations than traditional-type generators.

  • Know What Must Be Powered

During an outage, give power priority to refrigerators, medical equipment, or heating systems. Electronics with little or no priority, such as dryers or stoves, may be better left offline to save power for essential needs.

Following these pointers will assure the proper and safe operation of your portable generator during emergency conditions. Plus, keep yourself updated regarding the latest technology associated with generators, such as dual-fuel and inverter models, for wiser purchasing and operational decisions.

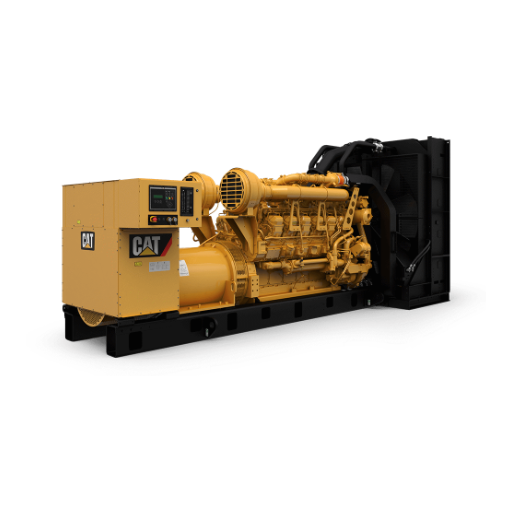

Considerations for Using a Portable Generator

Considerations for Using a Portable Generator
Considerations for Using a Portable Generator
  • Installation Matters: Generators should be continuously operated outdoors, preferably in a well-ventilated place at least 20 feet away from doors, windows, and vents to prevent carbon monoxide poisoning.
  • Fuel Management: Always choose the right fuel as recommended by the manufacturer and store it safely in approved containers. Never refuel a generator that is operating or still hot.
  • Power Capacity: Ensure the generator’s power output meets the requirements of all the devices you intend to connect. Overloading can damage both the generator and your appliances.
  • Proper Connections: Ensure heavy-duty extension cords with grounding are used to connect appliances, or else consider a transfer switch to wire appliances straight inside your home circuits.
  • Regular Maintenance: Keep a maintenance schedule and perform the routines, checking the oil level, cleaning out the filters, or spotting any wear to ensure its reliability, as required when the time comes.

Consider these areas to ensure that your portable generator remains safe and efficient.

Fuel Types and Efficiency

The Schrullen hierboven, the standard fuels have been outlined with their own characteristics:

  • Gasoline: Gasoline tends to be one of the more common fuels, mainly due to availability. Efficiency-wise, it tends to be decent, but there are other drawbacks, such as higher emissions and limited shelf life, given that gasoline deteriorates over time. On average, a standard gasoline-powered portable generator consumes roughly 0.75 gallons per hour at a 50% load and can run around 12-15 hours on a full tank.
  • Propane: Propane generators are relatively cleaner and more environmentally friendly than gasoline types. Next, propane is also easier to store for long periods, practically having no depreciation in quality. Conversely, they may lose efficiency, giving a consumption of about 1.2 gallons per hour at the same 50% load. The cost of propane could be cheaper in some localities; the trade-off in efficiency is, however, something to consider.
  • Diesel: Diesel-powered generators are quite durable and fuel-efficient. They consume 0.4-0.6 gallons of diesel per hour at 50% load, making them cheap to buy and run in the long term. Diesel stores well better than gasoline, but it might require additives in cold weather to prevent it from gelling.
  • Dual-Fuel Generators: Essentially, these help accommodate the use of gasoline and propane fuels, accommodating users to fuel choice availability constraints. The efficiency varies based on the fuel when dual-fuel; however, dual-fuel generators can yield a lot of peace of mind during an emergency when purchasing one fuel type becomes hard.
  • Solar-Powered Generators: Solar generators are on their way to becoming the new clean and renewable energy trend. While they must have sunlight for charging and a relatively high initial cost, they remain the alternative with the least running costs and are eco-friendly. Solar generators are for light power requirements at best and might not stand a competition against heavier loads with traditional fuel-based generators.

Environmental Impact and Safety Concerns

While indispensable for backup or portable power, generators can cause serious environmental problems, depending on the fuel and operation applied to them. Diesel, gasoline, and the like are traditional fuels for generators. As such, generators emit carbon dioxide, a greenhouse gas linked to global warming. According to the Environmental Protection Agency (EPA), carbon emissions from one gas-powered generator stand as heavy as 12 pounds per hour of operation. Further pollutants such as carbon monoxide (CO), nitrogen oxides (NOx), and particulate matter (PM), which are damaging to air quality and physical health, might also be emitted.

Solar generators are primarily considered the cleanest energy solutions from an ecological viewpoint. Since they rely exclusively on sunlight as a power source, they give off no emissions during their actual application. However, solar generators impact the environment during manufacturing: building solar panels and batteries requires lots of energy and raw materials. Recycling these components at the end of their lives remains a significant challenge, although further improvements are being made to these systems’ sustainability.

The traditional fuel-powered generator presents a safety hazard for carbon monoxide poisoning, especially if used in unventilated places. According to the U.S. Consumer Product Safety Commission (CPSC), portable generators cause at least 80 deaths each year from carbon monoxide poisoning. This hazard can be decreased by using good ventilation and only using or operating generators outside. Fuel storage also poses a fire risk if not handled properly.

Solar-powered generators are safer alternatives on the opposite side of the fence since they do not involve combustible or toxic emissions. However, care still needs to be exercised with lithium-ion batteries to avoid any risk of overheating or fire. It is equally essential to maintain all types of generators and follow manufacturers’ instructions for safe operation.

An understanding will therefore help in evaluating the environmental and safety considerations pertinent to differing generator options.

 Help consumers make informed decisions while minimizing their ecological and health impacts.

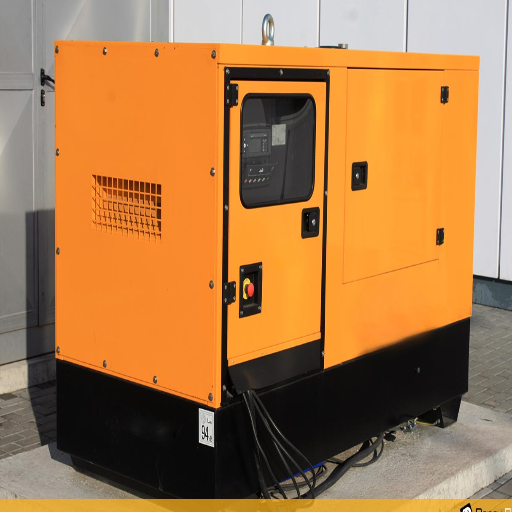

Maintenance Tips for Your Portable Generator

Maintenance Tips for Your Portable Generator
Maintenance Tips for Your Portable Generator
  • Regular Oil Changes

Check the oil level before starting the equipment and change it according to the manufacturer’s recommendations to ensure the engine runs smoothly.

  • Clean or Replace the Air Filter

Check the air filter periodically; if clogged, clean or replace it to ensure the correct airflow and deliver performance.

  • Periodic Generator Run

Although not being used, clock the generator once every 3-4 weeks to lubricate the engine and prevent the fuel from staling.

  • Inspect Cords and Connections

Before utilization, verify all cords and connections for wear or damage that would render an electrical hazard.

  • Fuel Maintenance

Employ fresh fuel and store it correctly. If the fuel will be unused for some time, add a stabilizer.

  • Keep It Clean

Dust out or rinse off dirt, debris, and moisture with a spray wand, especially around air vents. This will prevent overheating and allow smooth functioning.

  • Follow the Manufacturer’s Manual

Always keep to the specific maintenance schedule and recommendations in the user or service manual for best results for its performance and longevity.

Regular Maintenance Practices

  • Spark Plug Inspection

Inspect the spark plug from time to time. When it is worn or has built up, it should be replaced to guarantee proper ignition and efficient generator operation.

  • Check Oil Level Regularly

Check the oil level and top it up whenever necessary. To avoid engine damage, follow the recommended oil change intervals.

  • Fuel System Components

Check fuel lines and filters regularly for cracks, leaks, or blockages. Replace any damaged parts immediately to ensure smooth fuel flow and prevent operational issues.

  • Test of Generator

Run the generator for a half hour every month, even if it is not used regularly, to keep the engine lubricated and ready for emergencies.

Coupled with consistent upkeep and observance of manufacturer guidelines, your generator’s durability, safety, and reliability can be greatly improved.

Storing Your Generator Properly

Proper storage of your generator is crucial if you desire it to remain in top condition, especially during long periods of inactivity. Follow these detailed steps to store your generator properly.

  • Clean Your Generator

Dirt, grease, or grime must be removed from the generator’s outside during storage. Use a damp cloth and mild soap if necessary. This prevents corrosion or pollutants from settling down during storage.

  • Drain the Fuel or Use Fuel Stabilizer

Gasoline begins to degrade in as little as 30 days, leading to gum and varnish formation in the fuel system. Storing for more than a month? Try either keeping the tank empty or maintaining the gasoline with a stabilizer against degradation. A study released in 2023 by the American Petroleum Institute showed that stabilizer usage may extend fuel life for up to 12 months. After adding the stabilizer, let the generator run for a few minutes to circulate the treated fuel.

  • Change Your Oil and Oil Filter

If used oil is left for a long period, it might incorporate contaminants harmful to your generator’s internal parts. Many manufacturers advise changing the oil and oil filter before storing the unit, and this procedure is also recommended for long-term storage.

  • Disconnect Battery (If Applicable)

If your generator is electric-start, disconnect the battery to prevent its discharge. Store the battery in a cool, dry place and charge it occasionally to maintain its capacity.

  • Cover Your Generator and Store It in a Dry Spot

Use a weatherproof cover or store your generator in a shed or garage to protect it from dust, moisture, and accidental damage. The place should be dry, well-ventilated, and relatively free of temperature extremes. Consumer Reports data shows that internal parts can rust with an increased level of humidity.

  • Keep It Out of Interiors for Too Long

If there is fuel in the tank, do not store your generator indoors or in an enclosed place; the fumes can be ignited at any time.

If followed well, the above detailed storage measures will help you considerably stretch the lifespan of your generator and keep it ready whenever you need it. In the event of storage, maintain a check on your generator so you may be able to identify any problems that arise in time.

Checking and Replacing Parts

Regular maintenance keeps your generator running efficiently by performing many checks and replacing worn-out key parts. The main components to check and instructions for replacement include the following:

  • Air Filter

It prevents dirt and fine particles from slipping into the engine. Fairly soon, it gathers dirt and dust, slowing down the operation of the generator. Check every 50 or 100 hours of operation or at least once a season. Replace any part that looks clogged or worn out. A dirty air filter causes retardation in fuel use and puts tremendous stress on the engine, eventually damaging it.

  • Spark Plug

A worn or defective spark plug may cause mystifying ignition issues, putting you to great work in getting your generator started. Perform an inspection after every 100 hours of operation or at least once a year. Search for needle wear: a black tip or corroded, for that matter. Things that every man ought to know: check for defects and replace your spark plug every 200 hours of operation or as per the manufacturer’s recommendations for flawless engine functioning.

  • Oil and Oil Filter

Another important maintenance step is changing the oil regularly. This ensures smooth engine running and prevents overheating. Oil levels should be checked every 20-30 hours of operation, with oil changes occurring every 50-100 hours, depending on the generator’s work intensity and the manufacturer’s recommendations. It is also wise to change the oil filter every time you change the oil to prevent contaminants from circulating through the engine.

  • Fuel Filter

It keeps dirt from the fuel system. Over time, it can become clogged; once this starts, it will always reduce fuel flow and engine performance. Inspect after 200 hours of use and replace if necessary to avoid misfires and hard starting.

  • Battery Maintenance

The battery is of paramount importance for generators with electric starters. Periodically check for corrosion on the battery terminals and ensure that the battery is fully charged. Replace the battery every 2-3 years or when necessary, especially if starting the generator becomes difficult.

  • Belts and Hoses

Look around for belts and hoses that show signs of cracking, fraying, or wear. Some of those parts just perish with time, and their state reflects how well or poorly particular generator components like the alternator operate. Act and replace any compromising belts or hoses to reclaim smoothness!

  • Cooling System

For liquid-cooled models, maintain a proper coolant level and ensure there are no leaks in the system. Flush and replace the coolant according to the manufacturer’s timetable, usually once every 1-2 years.

Staying consistent with these checks and replacements will prevent unforeseen breakdowns, extending the life of your generator. Refer to the handwritten user manual for exact intervals and recommendations for your generator model. Logging your maintenance activities will help you keep track of tasks performed and guarantee that no parts are overlooked.

Reference Sources

  1. Green moisture-electric generator based on supramolecular hydrogel with tens of milliamp electricity toward practical applications (Yang et al., 2024)
    • Key Findings: The authors developed a moisture-electric generator (MEG) based on a supramolecular hydrogel that can generate a sustained voltage output of 1.1 V and a short-circuit current density of 1.31 mA cm−2. This high performance is attributed to the hydrogel’s enhanced moisture absorption and ion transport properties.
    • Methodology: The MEG device was fabricated by sandwiching the supramolecular hydrogel between two electrodes. The authors characterized the hydrogel-based MEG’s electrical output, moisture absorption, and ion transport properties.
  2. High-Performance Fully Stretchable Moist-Electric Generator (Wen et al., 2023)
    • Key Findings: The authors developed a fully stretchable moist-electric generator (FSMEG) that can achieve a sustained short-circuit current of 50 μA and an open-circuit voltage of 0.3 V, even under 400% strain. This high performance is attributed to the decreased crystallinity of the ionic hydrogel and the synergistic effect of water evaporation and redox reactions at the electrodes.
    • Methodology: The FSMEG was fabricated using a stretchable hygroscopic ionic hydrogel and carbon black-coated cotton fabric electrodes. The authors characterized its electrical output, stretchability, and mechanical properties.
  3. Multistage coupling water-enabled electric generator with customizable energy output (Li et al., 2023)
    • Key Findings: The authors developed a multistage coupling water-enabled electric generator (mc-WEG) that can utilize both the liquid flow and moisture diffusion to generate electricity simultaneously, achieving a maximum output power density of ~92 mW m−2 (~11 W m−3). The customizable energy output is enabled by a “flexible building blocks” strategy that integrates water-flow-enabled and moisture-diffusion-enabled electricity generation layers.
    • Methodology: The mc-WEG device was fabricated by stacking multiple layers of water-flow-enabled and moisture-diffusion-enabled electricity generation units. The authors characterized its electrical output, water utilization efficiency, and scalability.

Frequently Asked Questions (FAQs)

How do you connect the generator to power backup systems?

You typically need a transfer switch to connect your generator to a backup power system. This device allows you to switch from utility to generator power safely, ensuring the electrical load is adequately managed. Follow the manufacturer’s instructions and check the manual for specific guidelines on connecting the generator to your home’s electrical system.

What is the role of the electric motor in a generator?

The electric motor in a generator plays a crucial role in converting mechanical energy into electrical energy. When the motor turns the generator’s rotor, a magnetic field induces an electric current in the stator windings. This process generates electricity that can be used to power various devices and appliances.

How can I run a generator to power my home during an outage?

To run a generator to power your home during an outage, you must ensure it is properly fueled and maintained. Connect the generator to your home’s electrical system using a transfer switch. Start the motor and let it run, monitoring the electrical load to ensure that it does not exceed the generator’s capacity.

What should I do to operate a portable generator in a house safely?

When operating a portable generator in a house, ensure it is placed outdoors in a well-ventilated area away from windows and doors to prevent carbon monoxide buildup. Use heavy-duty extension cords to connect appliances and avoid overloading the generator. Always read the generator’s manual and adhere to safety guidelines for operation.

How does a home standby generator restore power automatically?

A home standby generator has an automatic transfer switch that detects power outages and switches your home’s electrical circuit to the generator. This allows the generator to start automatically and supply electricity to essential circuits, ensuring that you have backup power without any manual intervention.

How do I turn the generator on and off safely?

To turn the generator on, ensure it is on a level surface and the fuel tank is full. Start the motor according to the manufacturer’s instructions, typically by pulling a recoil starter or using an electric start. To turn off the generator, disconnect all electrical loads, let it run for a few minutes to cool down, and then turn off the switch or press the stop button.

What is the importance of having carbon monoxide detectors when using a generator?

Carbon monoxide detectors are essential when using a generator because they alert you to dangerous levels of carbon monoxide, a colorless and odorless gas produced during combustion. Installing CO detectors near sleeping areas ensures that you are promptly informed if there are unsafe levels of this gas, protecting your health and safety.

Can I use a generator to power a well pump?

Yes, you can use a generator to power a well pump, provided the generator produces enough electricity to meet the pump’s power requirements. It is essential to check the wattage of your well pump and ensure that the generator can supply that amount without exceeding its capacity.

How do I maintain my home generators for optimal performance?

To maintain your home generators for optimal performance, perform regular checks on the fuel tank, oil levels, and air filters. Schedule routine maintenance and inspections as recommended in the owner’s manual. Keeping your generator clean and ensuring all parts function correctly will help it operate efficiently and prolong its lifespan.
