Natural disasters, followed by power grid failure or emergencies on-site, are just a few examples of suddenly unforeseen contingencies that can pull operations into the abyss of costly downtime when there is no emergency power supply system to uphold it. These systems ensure the smooth functioning of vital processes, maintain safety, and provide operational backup during a power outage. This blog will cover the basics of emergency power supply systems, what key components comprise such an installation, and what requirements an installation must meet. Suppose your sector operates with power-dependent systems (healthcare, data processing, manufacturing, etc.). In that case, you will understand why these systems are essential and learn more about selecting or setting up one that fits your needs. So, stay ahead as we take you through the fundamentals of efficient emergency power installations.

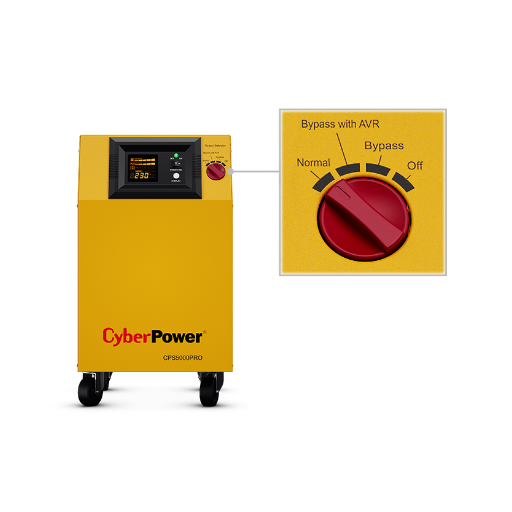

Understanding Emergency Power Systems
An emergency power system is designed to act as a substitute electricity supplier when an outage or interruption occurs. These systems ensure that emergency and critical operations do not lose time, which is extremely important for fields including hospitals, data handling, and manufacturing. Such systems usually require equipment like generators, UPS, and transfer switches working together for reliable power during downtime on the primary source. Designated to provide emergency functions, these power systems assist in saving downtime, loss of data, and hazards to safety.
Definition of Emergency Power
Emergency power means an independent power supply system designed to actuate when the primary power generation is disabled or interrupted. These systems remain critical to ensure that the running of services remains uninterrupted, especially during power outages brought about by natural disasters, system failure, or technical malfunctions. Emergency power systems through the generator, UPS, and transfer switch guard against downtime and protect operational continuity, sensitive equipment, and essential safety measures.
Components of an Emergency Power Supply System
- Generator: The generator is the heart of any emergency power supply system. It provides power during a power failure by mechanical-electrical conversion. Depending on availability and applications, generators use diesel, natural gas, or propane as fuel.
- Uninterruptible Power Supply (UPS): The UPS provides instant backup while charging batteries or flywheels. It is vital in safeguarding critical equipment from sudden cuts or fluctuations in power and allowing a smooth switchover to generator power.
- Automatic Transfer Switch (ATS): The ATS provides a great service by automatically transferring the power source from the main supply to the generator during outages. It then reverses the process when utility power is restored to ensure a smooth reconnection.
- Fuel Systems: An uninterrupted supply of fuel is necessary to ensure a generator’s long-term operation. Fuel tanks, filters, and delivery systems are therefore designed to guarantee an uninterrupted fuel supply for extended-duration emergency power generation.
- Control Panels: Modern control panels allow an operator to completely monitor and control the emergency power system. They provide critical information on load, fuel status, and system performance for better reliability and efficiency.
- Distribution System: The distribution system distributes the generated power to the system, equipment, or the facility of concern. It will include breakers, cables, and panels levelled to different intensities of power loads and are safe to operate.
Together, these components form an integrated structure supporting continuing operation to limit interruptions during unanticipated power outages and to ensure safety.
Importance of Emergency Power Requirements
Emergency power requirements are critical for maintaining operational stability and ensuring safety and security in diverse environments, from hospitals to data centers and industrial facilities. Any power interruptions cause processes to halt for a moment, which is a significant disruption, loss of data, or a compromise to the safety of automated systems and digital infrastructure. Recent data have shown an increase in internet searches related to emergency power, evidencing public and organizational awareness of finding a backup solution. A robust emergency power system reduces downtime, protects precious equipment, and ensures compliance with safety regulations. Such preparedness is vital in natural calamities or grid failures, when access to power can become life-saving.

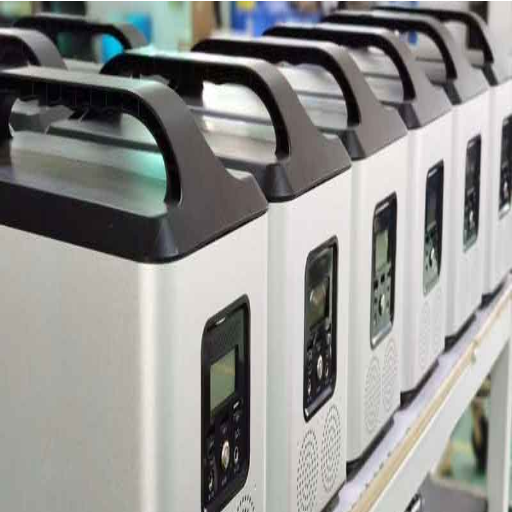

Types of Power Systems
- Generation Systems
During power outages, fuel sources such as diesel, natural gas, or propane are used to generate electricity by these systems. These generators are used as an alternate source of power in houses, stores, and critical facilities.
- Uninterruptible Power Supply (UPS)
The UPS protects sensitive equipment from damage and keeps the power going for a short, immediate couple of seconds. It is used in data centers, hospitals, and environments where continuous running is required.
- Renewable Energy Systems
When connected to battery banks, solar panels and wind turbines provide a backup power system. This is an environmentally friendly and sustainable solution that provides clean energy.
- Hybrid Power Systems
These systems combine conventional-fuel generators with renewable energy sources for greater efficiency and reliability. They are particularly useful on remote sites and for off-grid applications.
Depending on varying power needs, these systems offer an uninterrupted electric supply to the end-users when an emergency situation or disruption occurs.
Standby Power Systems Explained
Standby power systems serve as backup solutions, providing electricity during power outages and disturbances on the primary power grid. They are usually set up in homes, commercial environments, or other critical infrastructures to ensure the essential equipment and services operations. Such systems generally include standby generators, UPS, or battery storage solutions.
Key Features of Standby Power Systems
- Automatic Operation
An ATS or automatic transfer switch in standby power systems detects an outage and starts the backup generator or alternate power source. The changeover is controlled entirely and effected seamlessly without any manual intervention.
- Fuel Versatility
Standby generators operate on different fuels, including diesel, natural gas, and propane. Following the trend, natural gas standby systems seem to be becoming more popular because they are cleaner and scalable.
- Power Output and Scalability
Standby power systems range from common small residential units supplying a few kilowatts to industrial-sized systems that provide tens and even hundreds of kilowatts, depending on the need. For example, a typical home standby generator is 10 to 20 kilowatts, whereas industrial systems can be 2,000 kilowatts and over.
Industry Insights and Data
- Market Growth
The recent market analysis states that the global standby power systems market was valued at about $20 billion in 2022 and is projected to grow at a CAGR of about 6% from 2023 to 2030. The demand for reliable power for different uses has increased with the increase in natural disasters due to climate change and the aging of grid infrastructures.
- Applications
Some 60% of standby power systems are said to be in commercial and industrial environments, including data centers, hospitals, and manufacturing plants, where power continuity is of the utmost importance. Roughly 30% of the market is residential, with increasing adoption in areas affected by blackouts due to extreme weather occurrences.
- Technological Advancements
Standby operations are on their way to being disrupted by massive advanced technological integration. Real-time monitoring, predictive maintenance, and higher energy efficiency now define advanced power systems. Some systems out there today can be controlled from anywhere via a smartphone; they let you check how much fuel is left, power output, and overall status.
In this highly unpredictable power landscape, standby power systems are crucial. With advancements in efficiency, sustainability, and reliability, they continue to uphold their stature in offering an uninterrupted power supply during critical occasions.
Backup Power Systems: Features and Benefits
Backup power systems host a variety of features and advantages that make them an absolute must in residential and commercial setups. Let’s break down five features and benefits.
- Automatic power transfer
Feature: Advanced backup systems sense outages and switch to generator power in a split second.
Benefit: This method secures an uninterrupted power supply without manual intervention, thereby avoiding any loss due to downtime.
- Fuel efficiency
Feature: They are perhaps the most fuel-efficient, be it on diesel, natural gas, or propane.
Benefit: Covers the operational costs against the environment.
- Remote monitoring and control
Feature: Thanks to new-age technology, many backup systems allow remote access through mobile applications or web interfaces.
Benefit: Users can monitor the system’s performance, check their fuel levels, and receive alerts when something actually requires their attention.
- Quiet operation
Feature: Soundproofing materials are utilized in conjunction with innovative engineering practices.
Benefit: This, rightfully so, would qualify them to function well in residential neighborhoods and noise-sensitive environments.
- Scalability
Feature: The backup systems can be customized, and expansion can be made as the power demand grows.
Benefit: It provides versatility for a bigger house or industrial applications.
These features increase backup power system functionality and reliability, making them a viable option for contemporary energy management strategies.
Level 1 vs Level 2 Emergency Power Systems
The emergency power systems should be of Level 1 importance for life safety, while the Level 2 importance systems support life safety-critical operations.
|
Aspect |
Level 1 |
Level 2 |
|---|---|---|
|
Criticality |
High |
Moderate |
|
Purpose |
Life safety |
Non-critical |
|
Response |
Immediate |
Delayed |
|
Examples |
Fire alarms |
Ventilation |
|
Code Req. |
Strict |
Less strict |
Generators in Emergency Power Supply
Generators are a significant component in emergency power supply systems, providing electricity when power fails. These generators ensure the functionality of necessary systems and infrastructures, such as lighting, medical assistance, and infrastructure. Emergency generators kick into action immediately during a primary power supply failure and are usually run on diesel or natural gas. These systems are continuously under testing and maintenance so that they can perform when required, providing a reliable backup to safety and operations during emergencies.
Types of Generators for Emergency Use
Emergency-use generators include those that run on diesel, gas, industrial power, and portable systems.
|
Type |
Fuel |
Mobility |
Power |
Noise |
|---|---|---|---|---|
|
Diesel |
Diesel |
Fixed |
High |
Moderate |
|
Gas |
Natural Gas |
Fixed |
Moderate |
Low |
|
Industrial |
Diesel/Gas |
Towable |
High |
Moderate |
|
Portable |
Gasoline |
Mobile |
Low |
High |
Choosing the Right Generator for Your Needs
Several key factors must be considered when choosing the right generator to ensure reliability and efficiency for any given situation. You, in fact, first need to assess your power needs—the total wattage of the appliances or equipment you wish to provide electricity for during an outage. Then, depending on your choice, a fixed installation would sound better, or if it is for a portable use, die-cast, meaning a home backup type generator versus a portable generator for job sites or camping.
The other most crucial consideration is fuel: diesel generators, good, give performance and life, whereas gasoline versions are a little lower in price, but also under heavy load are lesser performers. Consider runtime and availability of fuel, however, as this will significantly impact the performance of your generator in case of prolonged outages. Then, check for safety features, ease of maintenance, and noise intensity to weigh their functionality against convenience. Considering that, you should arrive at a generator suitable for your emergency power needs.
Maintenance of Generators in Emergency Power Systems
Good maintenance of generators in an emergency power system is essential so that the generator can work when required with this generator. Regular inspection and servicing may also identify the problem before it becomes more complex, leading to an unexpected failure. The maintenance schedule includes checking the oil and coolant levels, inspecting fuel systems for leaks or dirt-containing leaks, charging the batteries, and ensuring that battery connections are firmly made. Air filters may need to be cleaned or replaced, and load tests should be done periodically under simulated conditions to increase performance levels. Keep to scheduled maintenance recommendations offered by the manufacturer and rely on certified technicians, ensuring your generator will last long and will function properly.

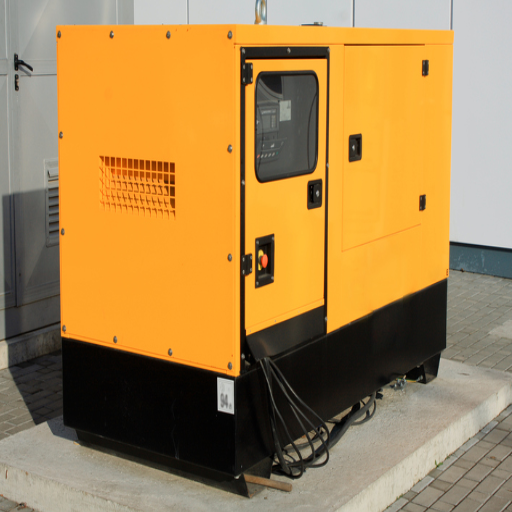

Transfer Switches and Their Role
Transfer switches are crucial for an uninterrupted load transfer from the utility source to the generator backup power system. In doing so, a transfer switch assures disruption-free outages and safely re-routes services to critical devices or systems. An automatic transfer switch (ATS) will act within seconds it detects a power failure. Manual transfer switches require someone to get up, walk to the switch, and tell it to transfer. Be that as it may, irrespective of the type of transfer switch, they remain the most crucial element in protecting electrical systems from interruptions in the power supply.
What is a Transfer Switch?
A transfer switch is a mandatory electrical device that changes the power source for a building or a system from main utility power to generator power, and it is essential in ensuring a steady and reliable power supply during outages or disturbances. Transfer switches are classified into two categories: Automatic and Manual. An automatic transfer switch (ATS) senses a power interruption and instantly transfers to generator power to ensure uninterrupted operation of critical systems. In contrast, a manual transfer switch requires the backup source to be engaged by hand. These devices ensure safety by avoiding generator backfeeding into utility lines, making power management convenient and efficient.
How Transfer Switches Enhance Power System Reliability
Transfer switches make a good case for the uninterrupted supply of energy and thereby provide complete reliability and efficiency during outages or fluctuations in power. According to recent data, power outages in the United States have increased by 64% in the last decade, affecting businesses, houses, and essential services. Transfer switches meet this challenge by allowing a smooth transition from utility power to a backup power source, like a generator or batteries.
Automatic transfer switches (ATS) are important for critical applications, such as hospitals, data centers, and factories. These switches detect power loss within milliseconds and automatically switch over to the power supply so that downtime and disruptions are kept to a minimum. Research shows that advanced ATS can switch from one source to another in as little as 10 milliseconds, thereby keeping sensitive equipment operational.
Apart from being fast, transfer switches ensure counter protection to the electrical systems. They come equipped with safety mechanisms such as surge protection and fault isolation. Transfer switches thus keep systems from being damaged while using any power transfer. Integrating transfer switches can further assist by improving the overall energy efficiency of the power system by optimizing the utilization of multi-source energy supply: solar power is a prime example. Recent studies reveal a 20% cut in energy bills for companies using energy management-equipped transfer switches.
With unfolding technology and increasing demands for resilient power infrastructure, transfer switches have emerged as a must-have component in modern power systems. Therefore, with the ability to guarantee continuity, safety, and efficiency, they are already contributing to maintaining power system reliability in a world that demands an uninterrupted energy supply.
Installation Considerations for Transfer Switches
Higher performance and safety can be assured for transfer switch installations by ensuring a few critical factors are considered during installation. First, make sure the switch is of an appropriate size depending on load capacity. Whatever energy load can be within the scope of its working capacity, the panacea for load calculation must consider whatever might be included outside its working capacity, along with energy requirements that are pretty different.” This must go on in order not to have significant issues resulting from misuse or inefficiencies. Also, it must comply with electrical codes specific to a given locale and its regulations to ensure safety standards.
Other considerations in installation and operation include the location of the switch. It must provide access to maintenance activities and not constitute a hazard from water exposure, extreme temperatures, or dust. The type of transfer switch should be consistent with the application’s operational needs and reliability requirements. Correct grounding and bonding are crucial since the processes can create unfavourable conditions of faults or ground loops. Finally, hiring a licensed electrician or power system engineer to install a transfer switch will guarantee the safest and most reliable system, carefully integrated with existing electrical infrastructure.
Reference Sources
1. Challenges in Upgrading Emergency Power in Florida Nursing Homes following Hurricane Irma
- Authors: N. Hutton, M. Allen
- Publication Date: October 1, 2020
- Citation Token: (Hutton & Allen, 2020)
- Summary: This paper examines the challenges faced by nursing homes in Florida regarding emergency power upgrades after Hurricane Irma. It highlights the importance of maintaining electricity to preserve the health and well-being of vulnerable populations. The study identifies key factors influencing compliance with emergency power regulations, including preexisting conditions of life-safety systems and the role of interagency connections in facilitating compliance. The findings emphasize the need for the timely implementation of emergency power systems to ensure safety during disasters.
2. Emergency Power Upgrades in Critical Facilities: Strategies for Risk Mitigation
- Authors: Philip Chow, M. Walker
- Publication Date: July 1, 2020
- Citation Token: (Chow & Walker, 2020, pp. 14–21)
- Summary: This article discusses risk mitigation strategies for upgrading emergency power systems in critical facilities such as hospitals and data centers. It outlines the complexities of emergency power systems, which often rely on multiple standby generators and control systems. The authors review successful strategies from projects that involved complete upgrades of emergency power systems, emphasizing the importance of integration among components to ensure reliable operation and minimize downtime.
3. Reliability and Cost Analysis of the Integrated Emergency Power System in Building Complex
- Authors: Liting Zhang et al.
- Publication Date: October 20, 2021
- Citation Token: (Zhang et al., 2021, pp. 501–527)
- Summary: This paper presents a model for integrating standalone emergency power systems with microgrids to improve power supply reliability in building complexes. The study evaluates the total cost of the integrated emergency power system, including economic losses during power outages. The authors propose a dispatch strategy based on reliability and power demand, demonstrating that the integrated system can enhance reliability while reducing costs.
Frequently Asked Questions (FAQs)
What is required to be on emergency power?
To be on emergency power, a facility must have a reliable backup power source, such as a generator or battery system, that can be activated during a power outage. Additionally, the systems must be regularly maintained and tested to ensure they are operational when needed. Proper load management and transfer switches are also essential to ensure critical systems receive power during emergencies.
What types of facilities need emergency power?
Hospitals, data centers, emergency response centers, and critical infrastructure sites require emergency power to maintain operations during outages. These facilities often have sensitive equipment and processes that cannot tolerate power interruptions.
How is emergency power activated?
Emergency power is typically activated through an automatic transfer switch (ATS) that detects a power failure and starts the backup generator. Depending on the system design, manual intervention may be required to switch to emergency power in some cases.
What are the regulations for emergency power systems?
Regulations for emergency power systems vary by region and industry but often include installation, maintenance, and testing guidelines. Facilities must comply with local building codes, National Fire Protection Association (NFPA) standards, and other relevant regulations to ensure safety and reliability.
How often should emergency power systems be tested?
Emergency power systems should be tested regularly, typically monthly for generators and annually for complete system tests. Regular testing ensures that the equipment functions correctly and can handle the necessary load when an emergency arises.
What maintenance is required for emergency power equipment?
Maintenance for emergency power equipment includes routine inspections, oil changes, battery checks, and load testing. Logging maintenance activities is important for compliance and to ensure that the systems are ready for use during an outage.
Can emergency power support all electrical loads?
Not all electrical loads can be supported by emergency power systems. It is crucial to prioritize critical loads and ensure the backup system can handle them effectively without overloading. Load management strategies may be necessary to determine which systems receive power during an emergency.
What is the difference between emergency power and backup power?
Emergency power refers specifically to power supplied during unexpected outages to maintain critical systems, while backup power can also include systems used for planned outages or maintenance. Emergency power is often activated automatically, whereas backup power may require manual intervention.
How can businesses prepare for a power outage?
Businesses can prepare for a power outage by conducting risk assessments, developing emergency response plans, investing in reliable emergency power systems, and training staff on procedures. Regular drills and system tests can also help ensure readiness for an outage.
