A power outage in a hospital is not an inconvenience. It is a clinical emergency. Ventilators stop, operating rooms go dark, and refrigerated medicines begin to spoil within minutes. A standby generator for healthcare is the difference between controlled continuity and patient harm. For facilities managers, procurement teams, and hospital engineers, choosing the right unit means balancing code compliance, load capacity, fuel strategy, and long-term reliability.
This guide explains how to select, size, and maintain a standby generator for healthcare applications. You will learn the difference between hospital EES branches, what NFPA 110 Type 10 Level 1 Class 96 means in practice, how to size a unit with motor inrush, and what testing records surveyors expect. For a deeper look at hospital-grade systems, see our complete guide to generator for hospital use.

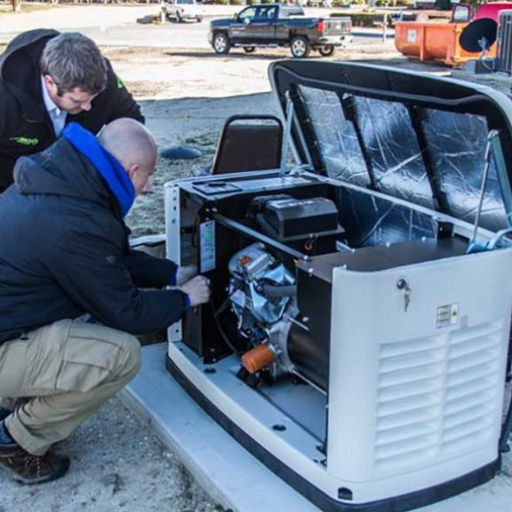

What Is a Standby Generator for Healthcare?
A standby generator for healthcare is an engine-generator set that supplies emergency power to a hospital or medical facility when utility power fails. It is not a general-purpose backup unit. It serves the Essential Electrical System (EES), which includes life safety circuits, critical patient care areas, and mechanical equipment required for hospital operations.
Under NFPA 110, hospital standby generators are normally specified as Type 10, Level 1, Class 96:
| Classification | Meaning |
|---|---|
| Type 10 | Power must reach rated voltage and frequency within 10 seconds |
| Level 1 | Failure could cause loss of life or serious injury |
| Class 96 | Stored fuel must support 96 hours of operation at full load |
This Type 10 Level 1 Class 96 rating is the baseline for hospital backup power in the United States and many other countries. The standby generator for healthcare must also coordinate with automatic transfer switches (ATS), uninterruptible power supply (UPS) systems for sensitive loads, and paralleling switchgear in larger facilities.
For more on standby power architecture, read our standby power system design guide.

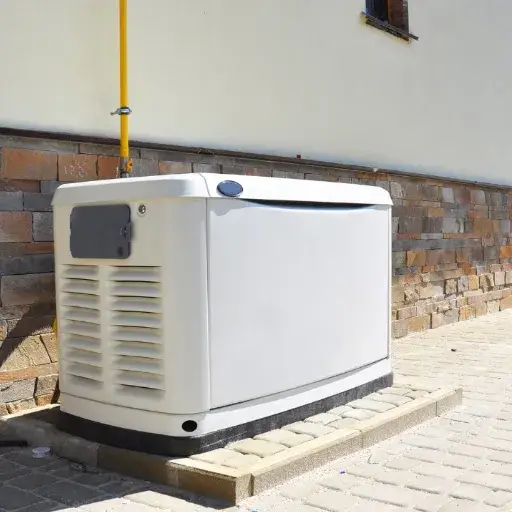

Why Healthcare Facilities Need a Hospital Backup Generator
Hospitals, clinics, nursing homes, and surgery centers cannot afford downtime. A hospital backup generator protects patients, preserves accreditation, and keeps revenue-generating services running.
Patient Safety
Operating rooms, intensive care units, neonatal intensive care, and emergency departments rely on continuous power. A standby generator for healthcare keeps ventilators, infusion pumps, dialysis machines, and patient monitors running. Even a brief interruption can endanger lives.
Regulatory Compliance
Healthcare facilities in the United States must meet CMS Conditions of Participation, NFPA 99, NFPA 110, NEC Article 517, and Joint Commission standards. Other countries enforce equivalent codes. Non-compliance can result in fines, loss of accreditation, or closure.
Financial and Operational Continuity
A prolonged outage without a hospital backup generator forces evacuations, cancels surgeries, and spoils refrigerated medicines. The cost of a properly sized standby generator for healthcare is small compared with the cost of even one day of disrupted operations.
Grid Instability and Disasters
Extreme weather, wildfires, infrastructure failures, and cyber incidents are increasing grid outages. On-site fuel storage and independent generator systems give healthcare facilities autonomy when the broader grid is unreliable.
Healthcare Essential Electrical System (EES) Branches
NFPA 99 divides hospital electrical systems into three branches within the EES. Each branch has distinct loads, transfer requirements, and ATS arrangements. The standby generator for healthcare must be sized to carry all three branches simultaneously.
Life Safety Branch
The Life Safety Branch supplies emergency lighting, exit signs, fire alarm systems, emergency communications, and egress pathways. It must restore power within 10 seconds of utility failure.
Critical Branch
The Critical Branch powers patient care areas. It includes operating rooms, intensive care units, nurseries, emergency treatment areas, nurse stations, and medical equipment essential to patient care. It must also restore power within 10 seconds.
Equipment Branch
The Equipment Branch supports the mechanical and building systems required for hospital operations. It includes HVAC for critical areas, medical air compressors, vacuum systems, sewage pumps, and fuel transfer pumps. Transfer can be delayed briefly through automatic load-shedding sequences.

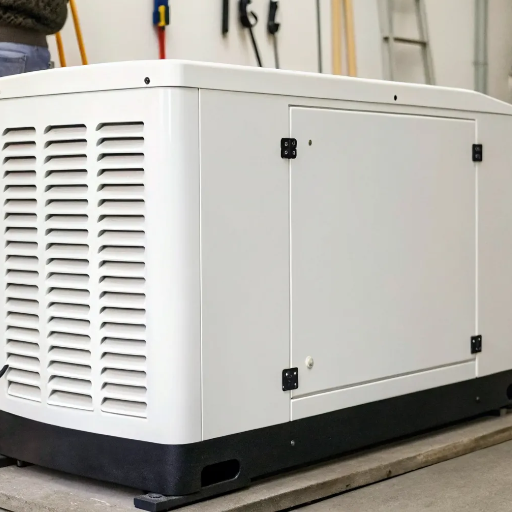

How Each Branch Affects Generator Sizing
A common mistake is adding only the critical branch load and ignoring the equipment branch. Chillers, pumps, and compressors have high motor inrush currents. The generator must accept all three branches at once or use staged automatic transfer to manage step loading.
| EES Branch | Typical Loads | Transfer Requirement |
|---|---|---|
| Life Safety | Egress lighting, fire alarms, emergency comms | ≤ 10 seconds |
| Critical | OR, ICU, patient care equipment, nurse stations | ≤ 10 seconds |
| Equipment | HVAC, medical air, vacuum, pumps | Delayed / sequenced |
Healthcare Generator Codes and Standards
Specifying a standby generator for healthcare is one of the most regulated tasks in electrical design. Several standards work together to define performance, installation, and testing requirements.
NFPA 99 — Health Care Facilities Code
NFPA 99 defines the Essential Electrical System and its three branches. It specifies which loads must be on emergency power, required transfer times, and the testing and maintenance program. It also categorizes electrical systems based on risk to patients.
NFPA 110 — Standard for Emergency and Standby Power Systems
NFPA 110 governs the generator and its supporting systems. It classifies emergency power supply systems by Level, Type, and Class. For hospitals, the typical designation is Type 10 Level 1 Class 96. This rating sets the transfer time, risk level, and fuel duration for a standby generator for healthcare duty. The standard also requires routine testing and maintenance.
NEC Article 517 — Health Care Facilities
The National Electrical Code Article 517 covers the installation of electrical systems in healthcare facilities. It addresses wiring methods, grounding, separation of EES branches, and coordination with NFPA 99.
CMS Conditions of Participation and Joint Commission
The Centers for Medicare & Medicaid Services (CMS) and The Joint Commission enforce emergency preparedness requirements. Surveyors check generator testing logs, fuel inventories, maintenance records, and load bank test reports. Documentation must be complete and current.
How to Size a Standby Generator for Healthcare
Hospital generator sizing is not guesswork. It requires a detailed load schedule, motor starting analysis, and careful application of diversity factors. A properly sized standby generator for healthcare will carry all EES branches, accept motor inrush, and leave room for future growth.
Step 1: Build a Branch-by-Branch Load Schedule
Start hospital generator sizing by listing every load on the EES by branch. Include nameplate kW or kVA for lighting, receptacles, medical equipment, chillers, pumps, fans, UPS systems, and elevators. Separate continuous loads from intermittent loads.
Step 2: Apply Diversity and Demand Factors
Not every load runs at full power simultaneously. Hospitals typically apply diversity factors of 0.7 to 0.85 for EES loads. Life Safety loads may use higher factors because emergency lighting and alarms operate together during an outage.
Step 3: Account for Motor Inrush and Step Loading
Large motors in chillers, medical air compressors, and vacuum pumps draw 5–7 times their running current during startup. A 100 HP chiller motor can require more than 500 kVA of starting capacity. Generator alternators must be sized to keep voltage dip within limits, usually 15% for critical loads.
Step 4: Add Future Growth and N+1 Redundancy
Hospital generator sizing should include 20–25% for future expansion, load growth, and temperature or altitude derating. Critical facilities often require N+1 redundancy, meaning one extra generator is available if a unit fails or is out of service.
Step 5: Convert to kVA and Select Standard Rating
The final step in hospital generator sizing is to convert kW to kVA using a power factor of 0.8. Round up to the next standard generator size. For the underlying industrial method, see our guide on how to choose diesel generator size. Manufacturers offer standard ratings in 50 kVA increments for smaller sizes and in 250–500 kVA increments for larger sizes.

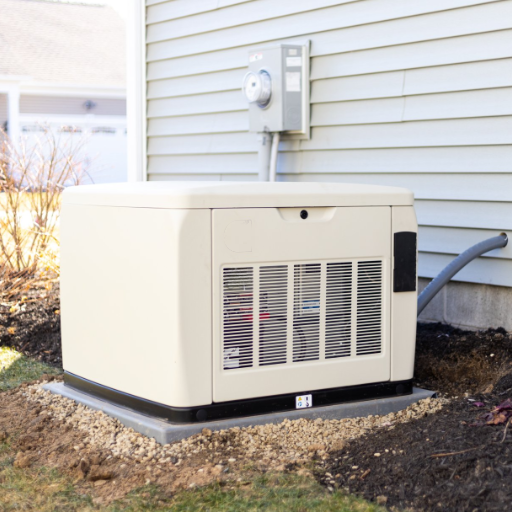

Hospital Generator Sizing Example: 300-Bed Regional Hospital
| EES Branch | Connected Load (kW) | Diversity Factor | Net Load (kW) |
|---|---|---|---|
| Life Safety | 120 | 0.90 | 108 |
| Critical | 680 | 0.85 | 578 |
| Equipment | 940 | 0.80 | 752 |
| Subtotal | 1,740 | — | 1,438 |
| Largest motor inrush kVA | — | — | +620 |
| 25% growth margin | — | — | +515 |
| Total required kVA | — | — | 2,573 |
| Selected rating | — | — | 2 × 1,600 kVA standby (N+1) |
A single 2,600 kVA unit could technically meet the load. However, N+1 redundancy for a regional hospital typically favors two 1,600 kVA generators with paralleling switchgear. If one generator fails, the remaining unit carries the most critical loads until repairs are completed.
Healthcare Generator Sizing by Bed Count
The table below provides rough estimates for early hospital generator sizing. Exact sizing still requires a branch-by-branch load schedule.
| Beds | Life Safety (kW) | Critical (kW) | Equipment (kW) | Diversity | Net kW | Recommended kVA |
|---|---|---|---|---|---|---|
| 50–100 | 40–80 | 80–150 | 100–200 | 0.80 | 180–350 | 250–500 |
| 150–300 | 80–150 | 200–400 | 250–500 | 0.80 | 420–800 | 600–1,250 |
| 400–600 | 120–200 | 400–700 | 500–900 | 0.75 | 800–1,350 | 1,250–2,000 |
| 700+ | 200–300 | 800–1,200 | 1,000–1,500 | 0.75 | 1,500–2,250 | 2,500–4,000 |
These ranges assume mixed medical and surgical beds with standard imaging and HVAC loads. Specialty hospitals with MRI, cardiac catheterization labs, or research facilities may require significantly more capacity.
Fuel Type and Storage for a Standby Generator for Healthcare
Diesel
Diesel is the dominant fuel for a standby generator for healthcare. It stores on site, starts quickly, and is widely available. A hospital backup generator running diesel can reach full power in 10–15 seconds. The main concerns are emissions, fuel degradation, and the need for periodic polishing and tank maintenance.
Natural Gas and Propane
Natural gas generators burn cleaner and avoid bulk fuel storage. However, pipelines can be shut off during earthquakes, hurricanes, or infrastructure failures. For this reason, many healthcare facilities do not rely on natural gas as the sole fuel for a standby generator for healthcare backup. Propane is common for smaller clinics and remote facilities.
HVO and Renewable Diesel
Hydrotreated vegetable oil (HVO) and renewable diesel are drop-in replacements for conventional diesel. They reduce net carbon emissions and can be used in many existing diesel engines. Hospitals with sustainability targets increasingly specify HVO-compatible generators.
Hybrid BESS + Generator Systems
A battery energy storage system (BESS) can cover brief outages entirely and reduce generator runtime during short events. When paired with solar, a BESS+generator system forms a microgrid that lowers fuel use and emissions while maintaining long-duration backup.
96-Hour Fuel Rule and 133% Reserve
Fuel storage for a standby generator for healthcare is governed by NFPA 110 Class 96. The rule requires enough stored fuel for 96 hours of operation at full load. Many authorities also require 133% of the calculated fuel volume to account for leaks, contamination, and access delays during disasters.
A hospital with a 1,000 kW diesel generator consuming roughly 250 liters per hour at full load needs approximately 32,000 liters for 96 hours, plus reserve. That volume is standard for a standby generator for healthcare Class 96 compliance.
Key Specifications for a Healthcare Standby Generator
Engine and Alternator Requirements
A standby generator for healthcare needs a reliable engine with fast starting and a stable governor. Common engine brands include Cummins, Perkins, Weichai, and Yuchai. Alternators should be brushless with low subtransient reactance to manage motor inrush. Stamford, Leroy-Somer, and Marathon alternators are widely used.
Automatic Transfer Switches (ATS) per Branch
Each EES branch typically has its own ATS. The Life Safety and Critical branches transfer within 10 seconds. The Equipment branch may transfer with a programmed delay to reduce simultaneous starting load on the standby generator for healthcare use.
Paralleling and N+1 Redundancy
Large hospitals use multiple generators with paralleling switchgear. This provides N+1 redundancy and allows load sharing. If one generator fails, the remaining units continue to power critical loads.
Remote Monitoring and Alarm Systems
Modern hospital generators include remote monitoring for status, alarms, fuel level, battery condition, and running hours. Integration with the building management system or a dedicated generator monitoring platform allows facilities staff to respond quickly.
Enclosures, Acoustics, and Emissions
Hospital generators are often installed near patient areas. Sound-attenuated enclosures keep noise below local limits. Emissions controls may be required to meet environmental regulations, especially in urban locations.

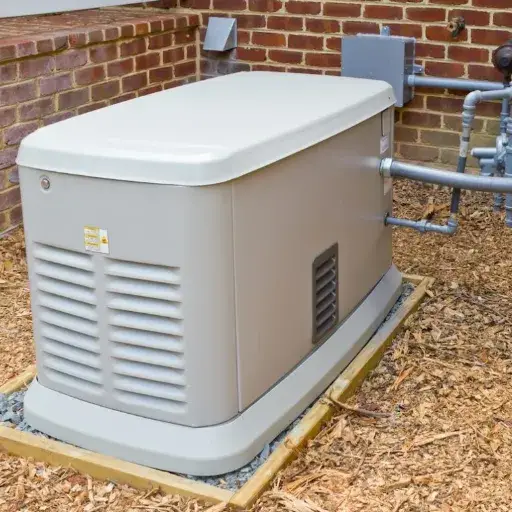

Testing and Maintenance Requirements
A hospital backup generator must be tested regularly to ensure it will perform during an actual outage. Every standby generator for healthcare needs documented monthly runs, load bank tests, fuel care, and maintenance records. Documentation is critical for Joint Commission and CMS surveys.
Monthly Loaded Run Tests
NFPA 110 requires monthly testing of a hospital backup generator under load for at least 30 minutes at not less than 30% of nameplate kW. The ATS must also be exercised monthly under load conditions.
Annual and Triennial Load Bank Testing
At least once every 36 months, a hospital backup generator must undergo a continuous test at full anticipated emergency load for a minimum of 4 hours. Annual load bank testing is common practice to prevent wet stacking and verify cooling and alternator performance.
Fuel Polishing and Tank Maintenance
Diesel fuel degrades over time. Water, microbial growth, and sediment can clog filters and damage injectors. Fuel polishing systems filter and condition fuel. Tank inspections and sampling should occur annually.
Documentation for Joint Commission Surveys
Facilities must maintain complete records of all tests, maintenance, repairs, fuel deliveries, and inspections. Surveyors will ask for these documents. A missing test log can result in a finding even if the generator itself is in perfect condition.

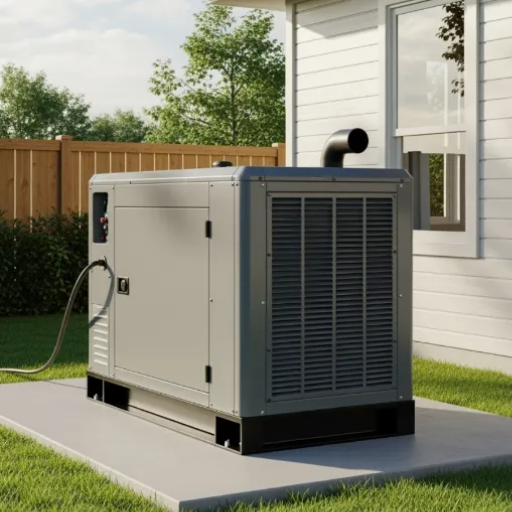

Buying a Standby Generator for Healthcare from a Chinese OEM
Procuring a standby generator for healthcare from a Chinese OEM such as Shandong Huali Electromechanical Co., Ltd. gives you hospital-grade generator sets with global engine brands, factory-direct pricing, and full customization. Huali’s hospital and healthcare industry page shows typical configurations and reference projects.
What to Look For
When you source a standby generator for healthcare projects, verify the following:
- ISO 9001 and ISO 14001 certification
- In-house test center capable of full-load factory acceptance testing (FAT)
- Engine partnerships with Cummins, Perkins, Weichai, or Yuchai
- Customization for voltage, frequency, sound enclosure, ATS, and paralleling controls
- Track record in healthcare and hospital projects
- Export experience with documentation for destination country codes
- Spare-parts availability and technical support network
Typical Lead Times
- Standard hospital generator sets: 6–8 weeks
- Customized systems with sound enclosures: 10–12 weeks
- Containerized or paralleled high-voltage plants: 12–16 weeks
Cost Advantage
Factory-direct procurement can reduce equipment cost by 25–40% compared with distributor or local integrator pricing. Healthcare facilities can reinvest these savings in installation, commissioning, spare parts, training, and maintenance contracts for their standby generator for healthcare use.
Standby Generator for Healthcare FAQs
What size standby generator does a healthcare facility need?
A 200-bed hospital typically needs 400–750 kVA. A 300-bed regional hospital may need 1,000–1,600 kVA. Exact sizing requires a branch-by-branch load schedule with motor inrush analysis.
How long does a standby generator for healthcare have to start after a power outage?
The Life Safety and Critical branches must restore power within 10 seconds under NFPA 110 Type 10 requirements. The Equipment branch may transfer after a short programmed delay.
What does Type 10 Level 1 Class 96 mean?
Type 10 Level 1 Class 96 is the standard designation for a standby generator for healthcare emergency power under NFPA 110. Type 10 means power is available within 10 seconds. Level 1 means failure could cause loss of life. Class 96 means the system can run for 96 hours on stored fuel.
Can one generator power all three EES branches?
Yes, if it is sized for the total load and each branch has its own ATS and distribution. Separation occurs at the ATS, not the generator.
What is the difference between the Life Safety branch and the Critical branch?
The Life Safety Branch powers egress lighting, fire alarms, and emergency communications. The Critical Branch powers patient care areas such as operating rooms and ICUs.
How often must a standby generator for healthcare be tested?
NFPA 110 requires monthly loaded run tests of at least 30 minutes at 30% load, plus ATS exercise. A full 4-hour load bank test is required at least once every 36 months.
What fuel do healthcare standby generators use?
Diesel is most common because it can be stored on-site and starts quickly. Natural gas, propane, HVO, renewable diesel, and hybrid BESS+generator systems are also used.
How much fuel should a healthcare facility store?
Class 96 requires 96 hours of fuel at full load. Many authorities require 133% of that calculated volume as a reserve.
What codes apply to healthcare standby generators?
Key standards include NFPA 99, NFPA 110, NEC Article 517, CMS Conditions of Participation, and Joint Commission requirements.
What are the benefits of buying a standby generator for healthcare from a Chinese OEM?
Factory-direct procurement reduces cost by 25–40% while providing Cummins, Perkins, Weichai, or Yuchai engines, customization, FAT, and global delivery.
Conclusion
The right standby generator for healthcare protects patients, preserves accreditation, and keeps operations running through grid failures. A hospital backup generator is the last line of defense when utility power disappears. Start by mapping the three EES branches and their loads. Size the generator for simultaneous branch operation, motor inrush, diversity, growth, and N+1 redundancy where required. Choose fuel and runtime based on local risks and sustainability goals. Then build a disciplined testing and maintenance program so the system is ready when seconds matter.
