Marine generator parallel operation is the process of connecting two or more shipboard diesel generators to a common electrical bus so they share the vessel’s electrical load as one stable power plant. Done correctly, it gives a ship redundancy, fuel flexibility, and the ability to right-size generation to actual demand. Done incorrectly, it can trip breakers, damage windings, or plunge an entire vessel into blackout.
Even on modern ships with automatic synchronizers, every marine engineer still needs to understand manual paralleling. Why? Because automation can fail, class societies expect crews to demonstrate the skill, and the consequences of a mistake are immediate and expensive. In this guide, we’ll walk through the complete ship generator parallel operation workflow—from pre-conditions and synchronization to load sharing, protection, and troubleshooting.
At Shandong Huali Electromechanical Co., Ltd., we build marine diesel generator sets with paralleling capability for commercial vessels, fishing fleets, and offshore projects. The principles below are the same ones our engineers use when commissioning multi-generator shipboard power systems.
Key Takeaways
- Marine generator parallel operation requires matching voltage, frequency, phase sequence, and phase angle before closing the paralleling breaker.
- Governor droop controls active power (kW) sharing; AVR droop controls reactive power (kVAR) sharing.
- Reverse power relays protect the bus by tripping a generator that starts motoring instead of producing power.
- A marine power management system (PMS) automates synchronization, load sharing, and load-dependent generator start/stop.
- Class societies require parallel operation tests from 20% to 100% load with active and reactive power imbalance within defined limits.

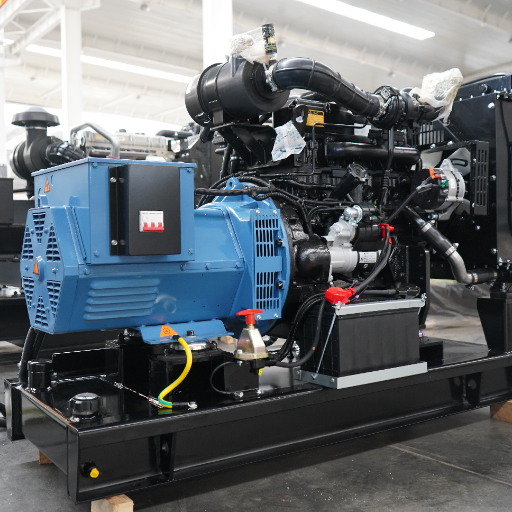

What Is Marine Generator Parallel Operation?
A single marine diesel generator can supply a small vessel’s hotel load, navigation equipment, and deck machinery. Larger vessels need more capacity and redundancy. The parallel operation of marine diesel generators lets ship designers specify two to four smaller generator sets that can run individually or in parallel, rather than installing one oversized unit.
For vessels that only need light power, a small marine diesel generator may be enough on its own. Parallel operation means the generators are electrically connected to the same bus bars. Their output voltages are synchronized so they contribute to the total load together. The result is a flexible power plant: run one generator at light load, two at moderate load, or three during heavy operations such as cargo handling, crane work, or dynamic positioning.
This arrangement also improves reliability. If one set fails or needs maintenance, the others keep the essential bus alive. For vessels operating far from shore, that redundancy is not a luxury—it is a design requirement.
Why Parallel Operation Matters at Sea
Ships rarely operate at a constant electrical load. A ferry in port may draw only a few hundred kilowatts for lighting and HVAC. The same ferry under way with full propulsion auxiliaries and hotel load can demand several megawatts. A single fixed generator would either be undersized for peak demand or inefficiently oversized for normal operation.
Running generators in parallel solves this mismatch. Operators can bring sets online as load rises and take them offline as it falls. Diesel engines operate most efficiently around 75–85% of rated load, so multi-generator plants let crews keep each unit in its optimal fuel-consumption zone.
Redundancy is equally important. SOLAS and class society rules for many vessel types require continuity of electrical supply to essential services. Parallel operation with multiple generators is the standard way to meet those rules.
Marine Generator Parallel Operation: Conditions Before Paralleling
Before closing the paralleling breaker, the incoming generator must match the running bus in four ways. These are often called the synchronization conditions for generator synchronization on ship. Ignoring any one of them causes circulating currents, mechanical shock, or immediate tripping.
Voltage Matching
The incoming generator’s terminal voltage should match the bus voltage within about ±5%. Ideally, keep it within ±1%. If the incoming voltage is too low, it will draw reactive power from the bus and act like a motor. If it is too high, it will force reactive power into the other machines and distort load sharing.
The automatic voltage regulator (AVR) is the tool for this adjustment. Raise or lower the AVR setpoint while watching the voltmeter until the readings align.
Frequency Matching
The incoming generator’s frequency must equal the bus frequency, typically within ±0.1 Hz. Most procedures set the incoming machine slightly fast—about 0.2 to 0.3 Hz above bus frequency—so it picks up load immediately after the breaker closes.
Frequency is adjusted with the engine governor or electronic speed control. Slight overspeed also ensures the synchroscope rotates slowly in the “fast” direction.
Phase Sequence and Phase Angle
The phase rotation of the incoming generator must match the bus exactly. On a three-phase system, both must read R-Y-B or L1-L2-L3 in the same order. Incorrect phase sequence is one of the most dangerous paralleling errors because it produces a near-short-circuit across the bus.
Even with correct phase sequence, the breaker must close only when the phase angle difference is close to zero. That is the job of the synchroscope or synchronizing lamps.
Waveform Quality and Harmonics
Generators with very different winding pitches, excitation systems, or harmonic distortion may not share load smoothly even when voltage and frequency match. Modern shipboard alternators are usually designed for compatible waveforms, but mixing old and new machines, or machines from different manufacturers, requires careful commissioning.

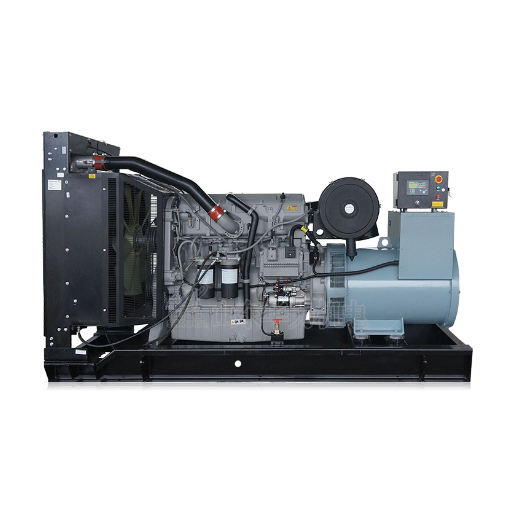

Ship Generator Parallel Operation: Step-by-Step Procedure
Every shipping company writes its own procedures, but the core sequence for ship generator parallel operation is universal. The following steps apply to manual synchronization, which remains the baseline skill even when automatic systems are installed.
Pre-Start Checks
Verify that the bus tie breaker, air circuit breakers (ACBs), and synchronizing panel are in good condition. Confirm that protective relays—especially reverse power, overcurrent, and differential—are in service. Never attempt paralleling with protection disabled.
Check fuel, coolant, lube oil, and starting air for the incoming set. Make sure the exhaust and ventilation systems are clear. Confirm that no maintenance locks or tags are active on the machine.
Start and Stabilize the Incoming Generator
Start the incoming generator and let it run unloaded until voltage, frequency, and temperature stabilize. This usually takes one to three minutes, depending on engine size and ambient conditions.
Use the governor control to set the frequency slightly above the bus frequency. Use the AVR to adjust the terminal voltage to match the bus. Watch both readings until they are steady.
Use the Synchroscope and Synchronizing Lamps
A synchroscope is a rotating dial that shows the phase relationship between the incoming generator and the live bus. When the pointer rotates clockwise, the incoming machine is running fast. When it rotates counterclockwise, it is running slow.
The goal is to have the pointer rotate slowly clockwise and close the breaker just before it reaches the 12 o’clock position, which represents zero phase difference. One full revolution every 3–4 seconds is a comfortable rate for manual paralleling.
Synchronizing lamps provide a backup indication. The lamps brighten when the machines are out of phase and go dark when they are in phase. Some panels use a “dark lamp” arrangement, while others use a “rotating light” pattern. Know which type is installed on your panel before you rely on it.
Real-world scenario: Chief Engineer Liu was training a junior officer on a 15,000 DWT bulk carrier. The trainee closed the paralleling breaker while the synchroscope was still spinning rapidly. The breaker tripped instantly on reverse power, and the shock caused the running generator’s governor to hunt for nearly 30 seconds. Liu used the incident to demonstrate why patience matters more than speed during synchronization.
Close the Breaker and Confirm Load Pickup
Close the paralleling breaker at the correct moment. You should see a small current “kick” on the ammeter, then stable current and power readings. If the breaker trips immediately, stop and investigate before attempting again.
Once paralleled, gradually increase the governor setpoint of the incoming machine while decreasing the governor setpoint of the running machine. Transfer load smoothly until both machines share the total load in proportion to their ratings.
Marine Generator Load Sharing in Parallel Operation
After successful paralleling, the next challenge is keeping each generator carrying its fair share of the load. Marine generator load sharing has two separate parts: active power (kW) and reactive power (kVAR).
Active Power (kW) Sharing
Real power is controlled by the engine governor. The governor determines how much fuel the engine receives and therefore how much mechanical torque it applies to the alternator. More fuel means more kW output.
For stable sharing, each governor must be set to the same speed droop. Droop means the engine speed decreases slightly as load increases. A typical setting is 2–4% droop from no-load to full-load. With matched droop, two generators of equal rating will carry equal kW at the same bus frequency.
If one generator has less droop than the other, it will try to carry more of the load. In extreme cases, the two machines “fight” each other, causing power oscillations and hunting.
Reactive Power (kVAR) Sharing
Reactive power is controlled by the AVR and the alternator’s field excitation. More excitation increases kVAR output and lowers power factor. Less excitation reduces kVAR output and raises power factor.
Like the governor, the AVR uses a voltage droop characteristic. Matched AVR droop ensures each machine shares reactive load according to its rating. If one alternator is over-excited compared to the others, it will supply too much kVAR and may cause circulating currents.
Isochronous vs. Droop Control
Droop mode is the standard for paralleled marine generators. It provides stable, predictable sharing when multiple machines are online.
Isochronous mode holds frequency constant regardless of load. It works well for a single generator running alone. Running two generators in isochronous mode simultaneously is dangerous because both will try to hold the same frequency and fight each other. Most PMS systems allow only one isochronous master while the others run in droop.
Protection Systems for Paralleled Marine Generators
Parallel operation exposes generators to faults that do not exist when a single machine runs alone. Protective relays are essential for limiting damage.
Reverse Power Relay
A reverse power relay trips the generator breaker if the machine starts drawing power from the bus instead of supplying it. This condition, called motoring, can happen during synchronization errors or if the engine loses fuel.
Typical settings trip at about 10% of rated power for roughly 10 seconds. The relay protects both the generator and the engine from damage.
Overcurrent and Differential Protection
Overcurrent relays protect against short circuits and sustained overloads. Differential protection compares current entering and leaving the generator windings. If the currents do not match, it indicates an internal fault and trips the machine quickly.
Under/Over-Frequency and Voltage Protection
These relays protect the bus and connected equipment from operating outside safe limits. They also prevent a faulty generator from destabilizing the rest of the plant.
Why Relays Must Stay in Service
It can be tempting to bypass a relay that trips during commissioning. That is a mistake. Protective relays are the last line of defense against catastrophic failure. If a relay trips repeatedly, diagnose and fix the root cause rather than disabling the protection.

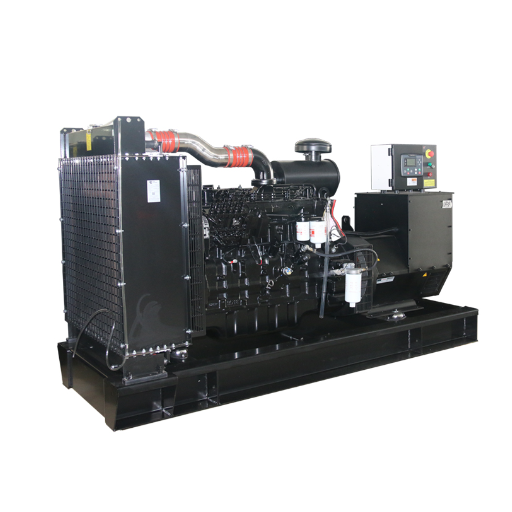

Automatic Synchronizers and Power Management Systems
Manual synchronization is a required skill, but modern vessels increasingly rely on automation for routine operation. A marine power management system (PMS) handles synchronization, load sharing, and generator management automatically.
Manual vs. Automatic Synchronization
Manual synchronization depends on the operator’s judgment and timing. It is reliable but slow. Automatic synchronizers measure voltage, frequency, and phase angle continuously and issue a breaker-close command at the ideal moment.
Automatic systems also adjust governor and AVR setpoints to maintain load sharing without operator intervention. They reduce crew workload and eliminate human timing errors.
| Feature | Manual Synchronization | Automatic Synchronization |
|---|---|---|
| Operator skill required | High; must read synchroscope and time breaker close | Lower; system monitors and closes automatically |
| Closing accuracy | Depends on operator reaction time | Typically within ±0.5° phase angle |
| Load sharing adjustment | Manual governor/AVR adjustment | Automatic governor/AVR control |
| Crew workload | Higher during each parallel | Lower; frees crew for other tasks |
| Typical application | Small vessels, backup operation | Yachts, offshore vessels, automated plants |
Deep Sea Electronics DSE7510 / DSE8610 MKII
Deep Sea Electronics controllers are widely used in shipboard generator panels. The DSE7510 provides automatic synchronizing, load sharing, and protection for up to 16 generator sets. It has been superseded by the DSE8610 MKII, which offers enhanced communications and marine-grade reliability.
These controllers connect directly to electronic governors and AVRs via 0–10 V DC outputs. They also provide Modbus and remote monitoring capability.
ABB IndustrialIT PMS and SYNCHROTACT 5
ABB’s IndustrialIT Power Management System integrates generator control, synchronization, load sharing, and load shedding on one platform. The SYNCHROTACT 5 family provides automatic paralleling relays for generators and bus ties.
ABB systems are common on larger commercial vessels, offshore platforms, and diesel-electric ships where precise power management affects both safety and fuel economy.
ComAp and DEIF Marine Solutions
ComAp’s AC/DC marine PMS handles automatic synchronization, running-hours equalization, and shore-connection control. DEIF offers the GPU/2/GS generator paralleling unit and the PPU-3 power management controller. Both brands are popular for retrofits and mid-size vessels.
Kohler Decision-Maker 3500 / PGEN Network
Kohler marine generators with the Decision-Maker 3500 controller can parallel with each other over a single PGEN communication wire. Up to eight Kohler generators of different sizes can share load automatically. The system includes first-on logic, soft loading, and generator management functions.
This is a useful example of manufacturer-integrated paralleling, but it generally works only with Kohler sets. Cross-brand paralleling usually requires custom-engineered switchgear. For a broader view of which manufacturers offer paralleling-capable models, see our marine generator brands comparison.
Class Society Testing Requirements
Before a new parallel-capable shipboard power plant is accepted, class surveyors witness a series of tests. The exact rules vary by society, but the principles are consistent across CCS, ABS, BV, and DNV.
Load Variation Tests
The plant must demonstrate stable operation from 20% to 100% of total rated load. Tests typically step through load levels such as 20%, 50%, 75%, and 100%, holding each point long enough to confirm stability.
Active and Reactive Power Distribution
Class rules limit load-sharing imbalance. A common requirement is that the difference in active power between generators must not exceed 15% of the largest generator’s rated power or 25% of the smallest generator’s rated power. For reactive power, the limit is often 10% of the largest machine’s rated reactive power or 25% of the smallest.
Sudden Loading and Motor Starting
The plant must survive sudden load application, such as starting a large motor or energizing a bow thruster. Frequency dip, voltage dip, and recovery time are measured and compared against class limits.
CCS and Other Society Criteria
For vessels requiring CCS-certified marine generator approval, documentation must include wiring diagrams, relay settings, governor and AVR droop curves, and test records. Similar documentation is required by ABS, BV, and DNV. Working with a supplier experienced in these approvals saves significant commissioning time.
Common Problems and Troubleshooting
Even well-designed systems develop problems over time. Knowing the symptoms and causes helps crews respond quickly.
| Symptom | Likely Cause | First Action |
|---|---|---|
| One generator carries more kW | Mismatched governor droop | Check and match droop settings |
| Unequal kVAR or power factor | AVR droop mismatch or failing excitation | Inspect AVR, diodes, and CT wiring |
| Power oscillations / hunting | Two generators in isochronous mode | Set only one machine as frequency master |
| Circulating currents | Different grounding schemes | Standardize generator neutral grounding |
| Breaker trips on paralleling | Voltage, frequency, or phase mismatch | Recheck synchronization conditions |
Unequal kW Sharing
If one generator carries significantly more kW than the other, check governor droop settings first. Worn injectors, dirty fuel filters, or a sluggish governor actuator can also cause imbalance. Verify that both engines reach full rated speed at no load and full rated power at the same bus frequency.
Unequal kVAR and Power Factor Imbalance
kVAR imbalance usually points to the AVR. Check voltage droop settings, excitation diodes, and current transformer connections. If one alternator has a failing rectifier or drifting AVR, it cannot maintain its share of reactive load.
Power Oscillations and Hunting
Oscillations often mean both generators are trying to control frequency at the same time. Confirm that only one machine is in isochronous mode if that feature is used. Mismatched governor time constants, overly aggressive PID tuning, or poor grounding can also cause hunting.
Circulating Currents from Grounding Mismatch
If one generator is solidly grounded and another uses high-resistance grounding, circulating currents can flow between the neutral points. This creates heat, noise, and erratic load sharing. Standardize the grounding scheme across all paralleled machines.
Asynchronous Connection Damage
Closing the breaker out of phase causes severe mechanical and electrical stress. The inrush current can distort the alternator shaft, damage couplings, or burn windings. Always confirm voltage, frequency, and phase sequence before paralleling. If in doubt, stop and start over.
Real-world scenario: A Southeast Asian fishing cooperative operated three small diesel generators on a pair of purse seiners. The crews kept one generator online most of the time because they distrusted paralleling. Fuel consumption was high and engine wear was uneven. After installing a simple automatic synchronizer and retraining the crews, the cooperative began running two generators in parallel during net hauling. Fuel use dropped by roughly 12%, and maintenance intervals became more predictable.

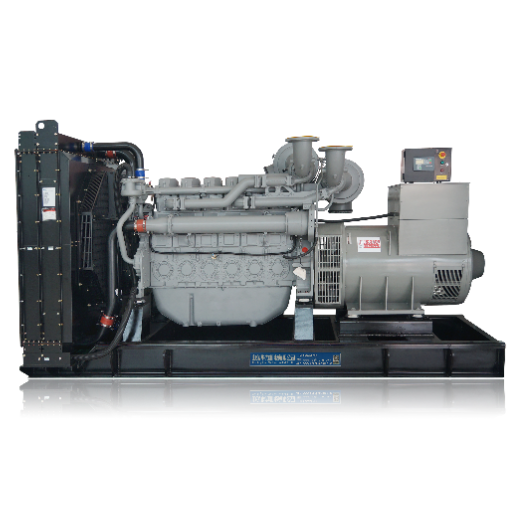

When Should You Parallel Marine Generators?
Parallel operation is not always the right choice. Running a single generator is simpler and avoids synchronizing risk. The decision depends on load profile, redundancy requirements, and fuel strategy.
Redundancy-Critical Operations
Parallel multiple generators whenever loss of power would endanger the vessel, crew, or cargo. This includes dynamic positioning operations, helicopter deck operations, passenger ferry transits, and critical cargo handling.
Fuel Efficiency Optimization
If a single generator would run below 40% load for long periods, consider paralleling two smaller sets. Keeping each engine in its 75–85% efficiency zone reduces fuel consumption and carbon buildup.
Mixed Load Profiles
Vessels with large intermittent loads—cranes, winches, thrusters—benefit from paralleling. The combined inertia of multiple generator rotors helps the bus absorb sudden load steps without excessive frequency dip.
Choosing Paralleling Equipment for Newbuilds and Retrofits
Selecting the right paralleling equipment starts with understanding the vessel’s operational profile. A small workboat may need only a manual synchronizing panel and basic reverse power protection. A large offshore vessel needs a full PMS with automatic synchronizers, load-dependent start/stop, and integration with propulsion and station-keeping systems.
For generator capacity planning, match the total installed capacity to the vessel’s largest expected load plus a margin for motor starting. Then decide how many generator sets to install. Two sets provide basic redundancy; three or four provide more flexibility and maintenance windows.
Generator paralleling switchgear must be rated for marine conditions: vibration, humidity, salt air, and temperature extremes. Panels should be type-tested and, where required, approved by the relevant classification society. For electrical installation guidance in the pleasure-craft sector, reference ABYC marine electrical standards.
Real-world scenario: A 40-meter yacht undergoing refit replaced its original manual paralleling panel with an integrated PMS. The new system automatically started a second generator when hotel load exceeded 70% of the running set’s capacity and stopped it when load dropped below 30%. Within one charter season, the owner reported quieter operation, lower fuel bills, and fewer generator running hours.
Maintenance and Commissioning Best Practices
Parallel operation depends on accurate calibration. During commissioning, record the following for each generator:
- No-load and full-load voltage and frequency
- Governor droop percentage
- AVR voltage droop percentage
- Reverse power relay setting
- Overcurrent and differential relay settings
- Phase sequence verification
Keep these records updated after any major maintenance. A single adjusted governor or replaced AVR can change load sharing and require rebalancing.
Regular marine generator maintenance also matters. Worn injectors, degraded alternator insulation, and corroded control wiring all affect parallel stability. Include governor and AVR response checks in the preventive maintenance schedule.
Conclusion
Marine generator parallel operation combines electrical theory, mechanical tuning, and disciplined procedure. Whether you call it marine generator parallel operation or ship generator parallel operation, the core requirements are the same: match voltage, frequency, and phase before closing the breaker; share active load with matched governor droop; share reactive load with matched AVR droop; and keep protective relays in service at all times.
Modern marine power management systems reduce operator workload and improve reliability, but they do not replace the engineer’s understanding of what is happening on the bus. Manual synchronization remains the foundation skill that every marine electrical officer must master.
If you are specifying a new shipboard power plant or retrofitting an existing vessel, the right paralleling strategy can improve redundancy, cut fuel consumption, and simplify classification approval. At Shandong Huali Electromechanical Co., Ltd., we supply parallel-capable marine generator sets with matched governors, AVRs, synchronizing panels, and class-society documentation.
